JIS 7409 25A 16K SDNR Valve
  • JIS 7409 25A 16K SDNR Valve
JIS 7409 25A 16K SDNR Valve

JIS 7409 25A 16K SDNR Valve

Quantity: 10 Pieces
Size: 25A
Pressure: 16K
Body Material: Stainless Steel
Type: Straight
  1.  The flanges shall conform to nominal pressure 16K of JIS B2210

  2. The name plate shall be specified by purchaser as required

  3. Materials:

(1). Bode: Bronze;

(2). Bonnet: Bronze/Brass;

(3). Disc: Bronze/Brass;

(4). Valve Disc Nut: Brass;

(5). Packing Gland: Brass;

(6). Gland Nut: Brass;

(7). Stem: Brass;

(8). Set Screw: Brass;

(9). Hend weel: Cast Iron;

(10). Hexagon Nut: Brass;

(11). Split Pin: Brass;

(12). Lock Plate: Brass;

(13). Disc Lock Washer: Brass;

(14). Packing: Non Asbestos;

(15). Washer: Steel;

(16). Indicator Plate: Brass;

(17). Indicator Piece: Brass

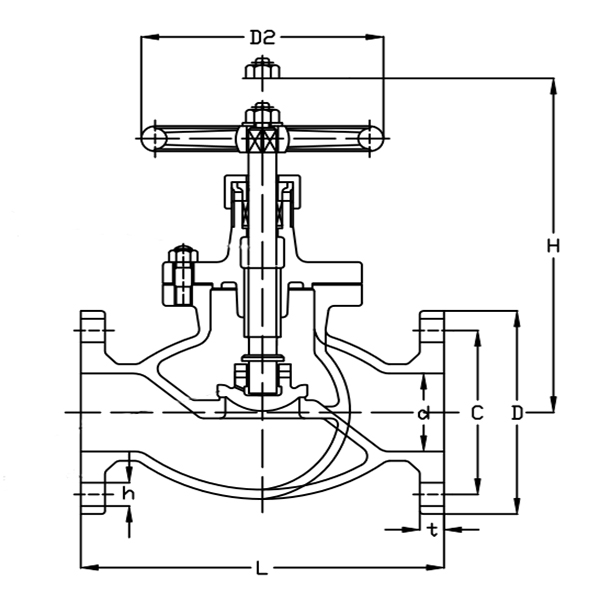

    4. Dimensions

Type

Size

L1

D

C

No.

h

t

H

D2

F7409

16K

25

130

125

90

4

19

14

160

125

 JIS 7409 25A 16K SDNR Valve.jpg JIS 7409 25A 16K SDNR Valve.jpg
