| Quantity: 1 Pieces |
| Size: 150A |
| Pressure: 10K |
| Body Material: Cast Steel |
| Type: Straight AJ Type |
Available medium: Steam of 300 degree and under.
DN (mm): 50~300
Type: AJ and BJ
Materials of mai Parts
(1). Body: Cast Steel;
(2). Cover: Cast Steel;
(3). Disc: Cast Steel;
(4). Stem: Stainless Steel

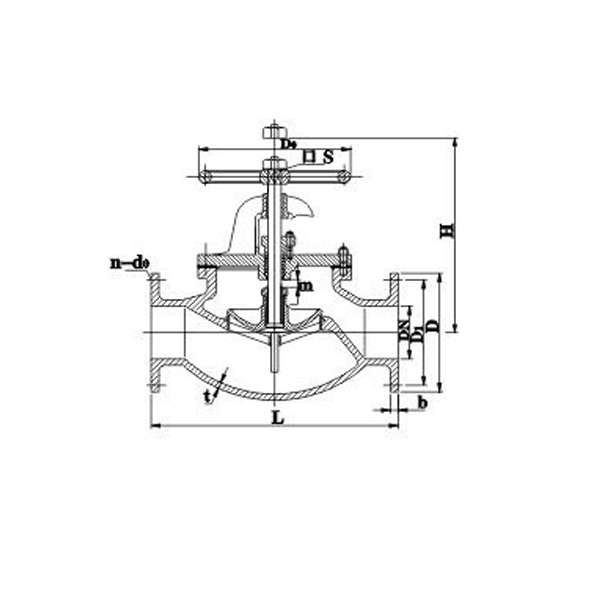

5. Dimensions
DN | L | H | t | D | D1 | b | n | dₒ | Th | D0 | S | kg |
150 | 205 | 400 | 13 | 280 | 240 | 22 | 8 | 23 | M20 | 315 | 27 | 77.1 |
