JIS F7318 150A Cast Steel Angle Valve
  • JIS F7318 150A Cast Steel Angle Valve
JIS F7318 150A Cast Steel Angle Valve

JIS F7318 150A Cast Steel Angle Valve

Quantity: 0 Pieces
Size: 150A
Pressure: 40K
Body Material: Cast Steel and Cast Iron
Type: Angle
  1.   The flanges shall conform to nominal pressure 40K of JIS B 2210

  2. The name plate shall be specified by purchaser as required

  3. Materials:

(1). Body: Cast Steel;

(2). Bonnet:  Cast Steel;

(3). Hand wheel:  Cast Iron;

(4). Disc: Bronze/Stainless Steel;

(5). Valve Seat: Bronze/Stainless Steel;

(6). Disc Nut: Bronze/Stainless Steel;

(7). Screw Bonnet Bush: Bronze/Stainless Steel;

(8). Bonnet Bush: Bronze/Stainless Steel;

(9). Packing Gland: Bronze;

(10). Stem: Bronze/Stainless Steel;

(11). Stud Bolt: Steel;

(12). Stud Bolt: Steel;

(13). Hexagon Nut: Steel;

(14). Hexagon Nut: Steel;

(15). Hexagon Nut: Steel;

(16). Lock Pin: Steel;

(17). Split Pin: Brass;

(18). Disc Lock Washer: Brass;

(19). Packing: Non Asbestos;

(20). Gasket: Non Asbestos;

(21). Washer: Steel

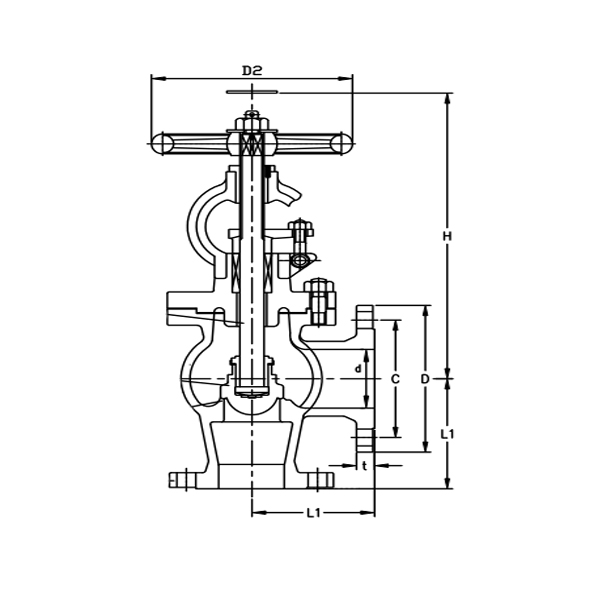

    4. Dimensions

Type

Size

D2

D

C

N-h

t

L1

H

kg

F7318

40K

150A

500

355

295

12-33

44

279

740

9.12


JIS F7318 150A Cast Steel Angle Valve .jpgJIS F7318 150A Cast Steel Angle Valve .jpg
