JIS F7334 10K 25A Bronze Hose Valve Screwed Bonnet
  • JIS F7334 10K 25A Bronze Hose Valve Screwed Bonnet
JIS F7334 10K 25A Bronze Hose Valve Screwed Bonnet

JIS F7334 10K 25A Bronze Hose Valve Screwed Bonnet

Quantity: 0 Pieces
Size: 25A
Pressure: 10K
Body Material: Bronze
Type: Straight
  1.  The flanges shall conform to nominal pressure 10K of JIS B2210

  2. Materials:

(1). Body: Bronze;

(2). Disc Bronze;

(3). Stem: Brass;

(4). Coupling: Bronze

    3. Dimensions

Type

Size

L

L1

D

C

No.

h

t

H

D2

D3

10K

25A

83

65

125

90

4

19

14

161

125

M42×2

JIS F7334 10K 25A Bronze Hose Valve(Screwed Bonnet).jpg

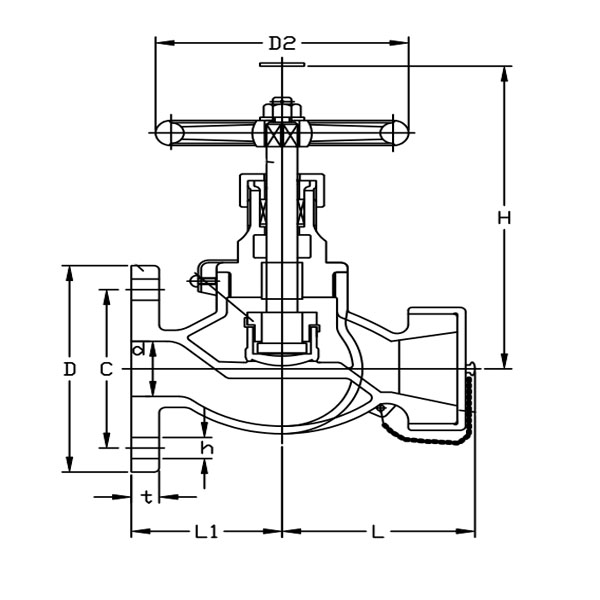

     4. Drawing

JIS F7334 10K 25A Bronze Hose Valve(Screwed Bonnet).jpg
