JIS F7474-SDNR Cast Steel Angle Valve
  • JIS F7474-SDNR Cast Steel Angle Valve
JIS F7474-SDNR Cast Steel Angle Valve

JIS F7474-SDNR Cast Steel Angle Valve

Quantity: 0 Pieces
Size: 80A
Pressure: 20K
Body Material: Cast Iron, Cast Steel, Steel, Cast Tin Bronze
Type: Angle
  1.   The flanges shall conform to nominal pressure 20K of JIS B 2210

  2. The name plate shall be specified by purchaser as required

  3. Materials:

(1). Body: Cast Steel;

(2). Bonnet:  Cast Steel;

(3). Hand wheel:  Cast Iron;

(4). Disc: Bronze/Stainless Steel;

(5). Valve Seat: Bronze/Stainless Steel;

(6). Disc Nut: Bronze/Stainless Steel;

(7). Screw Bonnet Bush: Bronze/Stainless Steel;

(8). Bonnet Bush: Bronze/Stainless Steel;

(9). Packing Gland: Bronze;

(10). Stem: Bronze/Stainless Steel;

(11). Stud Bolt: Steel;

(12). Stud Bolt: Steel;

(13). Hexagon Nut: Steel;

(14). Hexagon Nut: Steel;

(15). Hexagon Nut: Steel;

(16). Lock Pin: Steel;

(17). Split Pin: Brass;

(18). Disc Lock Washer: Brass;

(19). Packing: Non Asbestos;

(20). Gasket: Non Asbestos;

(21). Washer: Steel

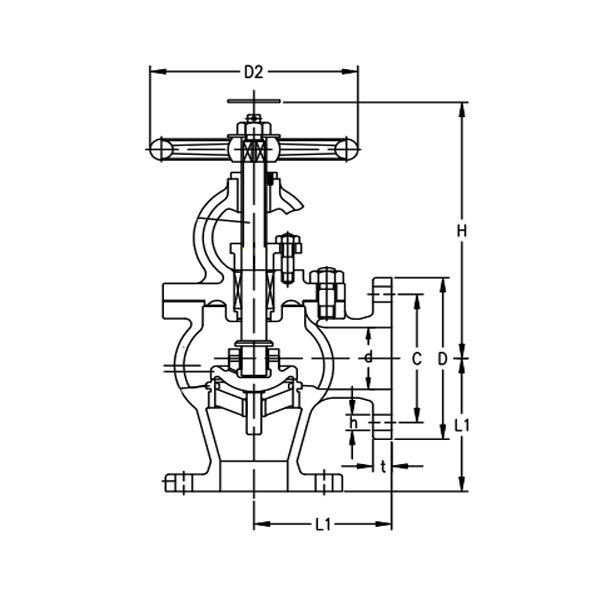

    4. Dimensions

Type

Size

D2

D

C

N-h

t

L

H

kg

F7474

20K

80A

250

200

160

8-23

22

150

340

38.9


JIS F7474-SDNR Cast Steel Angle Valve.jpgJIS F7474-SDNR Cast Steel Angle Valve.jpg
