Quantity: 5 Pieces |
Size: 65A |
Pressure: 10K |
Body Material: Cast Iron |
Type: Straight |
The flanges shall conform to nominal pressure 10K of JIS B 2210
The name plate shall be specified by purchaser as requred
3. Materials:
(1). Body: Cast Iron;
(2). Bonnet: Cast Iron;
(3). Handwheel: Cast Iron;
(4). Disc: Bronze/Stainless Steel;
(5). Valve Seat: Bronze/Stainless Steel;
(6). Disc Nut: Bronze/Stainless Steel;
(7). Screw Bonnet Bush: Bronze/Stainless Steel;
(8). Bonnet Bush: Bronze/Stainless Steel;
(9). Packing Gland: Bronze;
(10). Stem: Bronze/Stainless Steel;
(11). Stud Bolt: Steel;
(12). Stud Bolt: Steel;
(13). Hexagon Nut: Steel;
(14). Hexagon Nut: Steel;
(15). Hexagon Nut: Steel;
(16). Lock Pin: Steel;
(17). Split Pin: Brass;
(18). Disc Lock Washer: Brass;
(19): Packing: Non Asbestos;
(20): Gasket: Non Asbestos;
(21). Washer: Steel

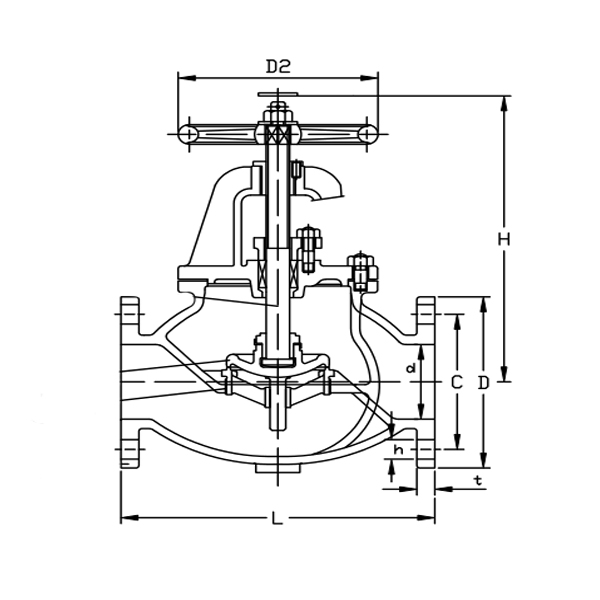

4. Dimensions
Type | Size | L | D | C | No. | h | t | H | D2/kg |
F7307 10K | 65 | 270 | 175 | 140 | 4 | 19 | 22 | 310 | 200/28.7 |
