Quantity: 10 Pieces |
Size: 150A |
Pressure: 10K |
Body Material: Cast Iron |
Type: Straight |
The flanges shall conform to nominal pressure 10K of JIS B2210
The name plate shall be specified by purchaser as required
Materials:
(1). Body: Cast Iron;
(2). Bonnet: Cast Iron;
(3). Stuffing Box: Cast Iron;
(4). Disc: Cast Iron;
(5). Handwheel: Cast Iron;
(6). Valve Seat Of Body: Bronze/Stainless Steel;
(7). Valve Seat Of Disc: Bronze/Stainless Steel;
(8). Screwed Piece: Bronze/Stainless Steel;
(9). Guide Bush : Bronze/Stainless Steel;
(10). Guide Bush: Bronze/Stainless Steel;
(11). Packing Glang: Bronze;
(12). Indicator: Brass;
(13). Indicator Plate: Brass;
(14). Stem: Brass/Stainless Steel;
(15). Stud Bolt: Steel;
(16). Stud Bolt: Steel;
(17). Stud Bolt: Steel;
(18). Taper Pin With Thread: Stainless Steel;
(19). Hexagon Nut: Steel;
(20). Hexagon Nut: Steel;
(21). Hexagon Nut: Steel;
(22). Hexagon Nut: Steel;
(23). Hexagon Nut: Steel;
(24). Machine Screw: Steel;
(25). Split Pin: Brass;
(26). Packing: Non Asbestos;
(27). Gasket: Non Asbestos;
(28). Gasket: Non Asbestos;
(29). Washer: Steel

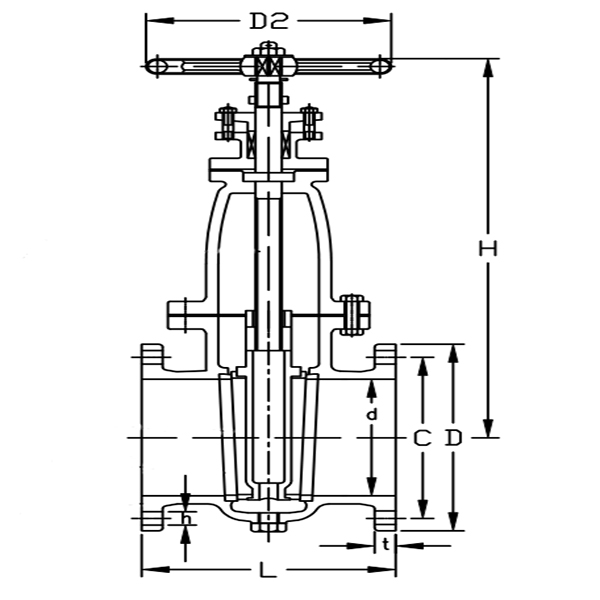

4. Dimensions
Type | Size | L1 | D | C | No. | h | t | H | D2 |
F7364 10K | 150 | 290 | 280 | 240 | 8 | 23 | 26 | 580 | 250 |
