JIS F7474 Cast Steel SDNR Valve
  • JIS F7474 Cast Steel SDNR Valve
JIS F7474 Cast Steel SDNR Valve

JIS F7474 Cast Steel SDNR Valve

Quantity: 1 Pieces
125A
Pressure: 20K
Body Material: Cast Steel
Type: Angle
  1.  The flanges shall conform to nominal pressure 20K of JIS B2210

  2. The name plate shall be specified by purchaser as required

  3. Materials:

(1). Body: Cast Steel;

(2). Seat: Stainless Steel;

(3). Disc: Stainless Steel;

(4). Stem: Stainless Steel

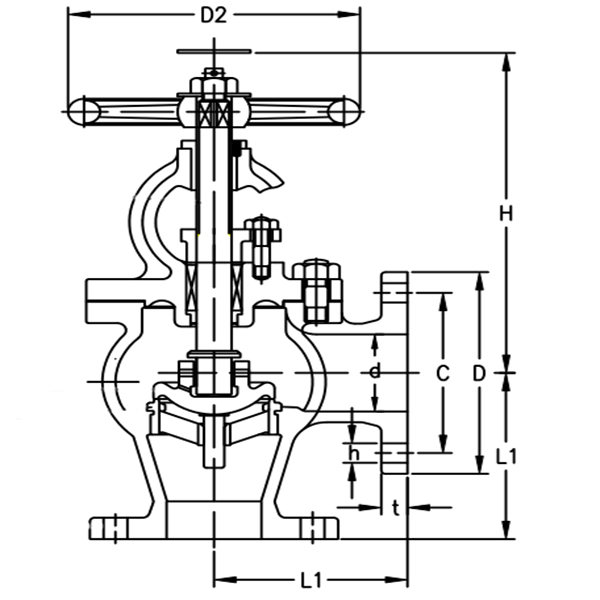

   4. Dimensions

Type

Size

L1

D

C

No.

h

t

H

D2

F7474

20K

125

200

270

225

8

25

26

440

315

JIS F7474 Cast Steel SDNR Valve .jpgJIS F7474 Cast Steel SDNR Valve .jpg
