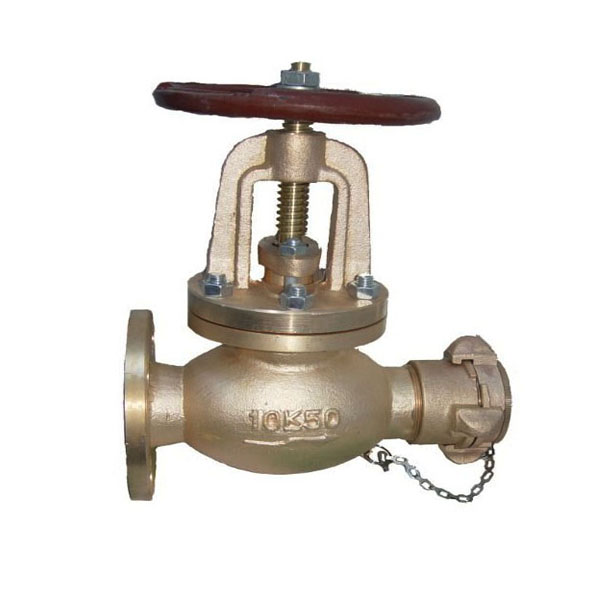

JIS F7334 J king of flange bronze hose saddle
  • JIS F7334 J king of flange bronze hose saddle
JIS F7334 J king of flange bronze hose saddle

JIS F7334 J king of flange bronze hose saddle

Quantity: 24 Pieces
Size: 50A
Pressure: 10K
Body Material: Cast Tin Bronze
Type: Straight AJ Type
  1. Available medium: Pulsation Water

  2. DN: 40~50(mm)

  3. Materials of main Parts

(1). Body: Cast Tin Bronze;

(2). Cover: Cast Tin Bronze;

(3). Disc: Cast Tin Bronze;

(4). Stem: Brass

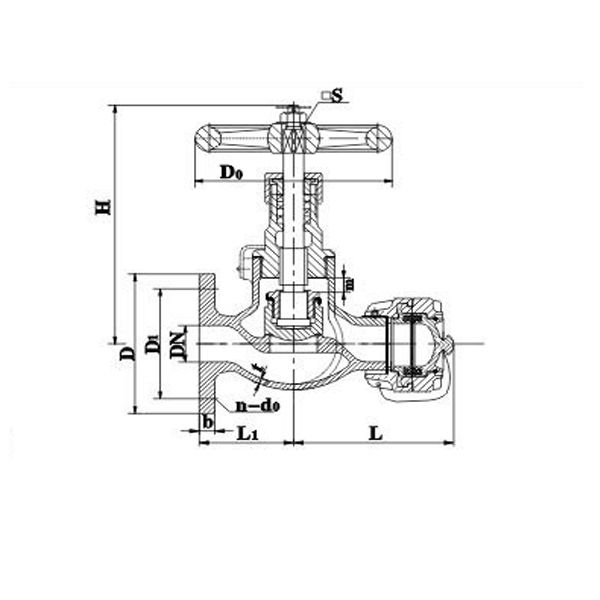

    4. Dimensions

DN

L

L1

H

t

D

D1

b

D

S

Th

m

kg

50

159.8

105

255

6

130

105

14

160

14

M12

17

12.9

JIS F7334 J king of flange bronze hose saddle1.jpgJIS F7334 J king of flange bronze hose saddle (2).jpg
