JIS F7301 25A 5K Globe Valve

JIS F7301 25A 5K Globe Valve

Quantity: 10 Pieces
Size: 25A
Pressure: 5K
Body Material: Bronze
Type: Straight
  1. The flanges shall conform to nominal pressure 5K of JIS B2240

  2. JIS F7301 5K for nominal dia 25 shall be mode Botled Bonnet type

 3. Materials:

(1). Bode: Bronze;

(2). Bonnet: Bronze/Brass;

(3). Disc: Bronze/Brass;

(4). Valve Disc Nut: Brass;

(5). Packing Gland: Brass;

(6). Gland Nut: Brass;

(7). Stem: Brass;

(8). Set Screw: Brass;

(9). Hendweel: Cast Iron;

(10). Hexagon Nut: Brass;

(11). Split Pin: Brass;

(12). Lock Plate: Brass;

(13). Disc Lock Washer: Brass;

(14). Packing: Non Asbestos;

(15). Washer: Steel;

(16). Indicator Plate: Brass;

(17). Indicator Piece

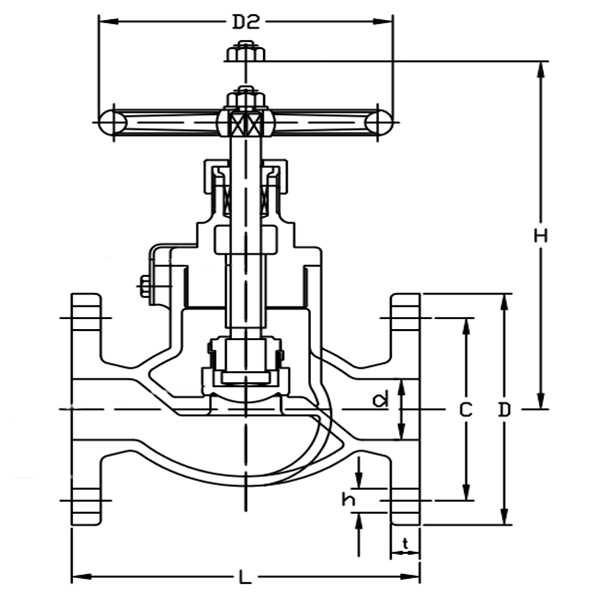

    4. Dimensions

Type

Size

L1

D

C

No.

h

t

H

D2

F7361

5K

25

120

95

75

4

12

10

160

125
