JIS F7302 Angle Valve
  • JIS F7302 Angle Valve
JIS F7302 Angle Valve

JIS F7302 Angle Valve

Quantity: 25 Pieces
Size: 25
Pressure: 5K
Body Material: Bronze
Type: Screwed Bonnet
  1. Series: F7302 - JIS 5K

  2. Manufactured in accordace to JIS F7400

  3. Flanges as per JIS B2220 - 5K or 16K

  4. Nominal Pressure: 5K,  16K

  5. Materials of main Parts:

(1). Body: Bronze;

(2). Disc: Bronze;

(3). Stem: Brass

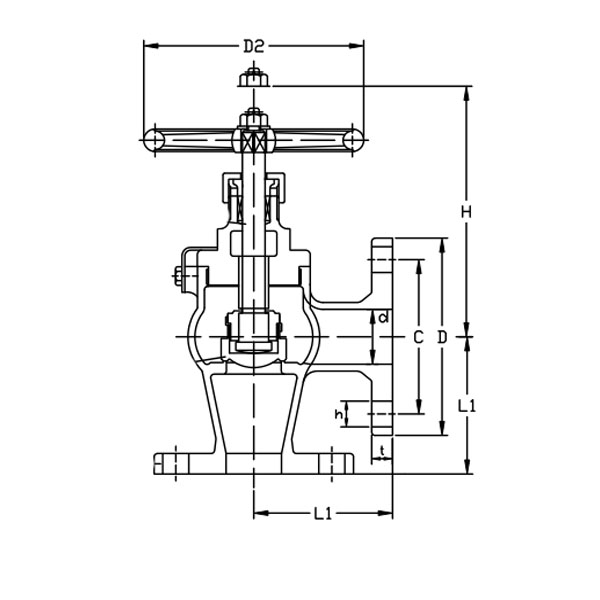

   5. Dimensions

F7302

Size

L

D

C

No.

h

t

H

D2

kg

5K

25

65

95

75

4

12

10

145

125

12

JIS F7302 Angle Valve.jpgJIS F7302 Angle Valve (2).jpg
