JIS F7220 Bronze Marine Strainer
  • JIS F7220 Bronze Marine Strainer
JIS F7220 Bronze Marine Strainer

JIS F7220 Bronze Marine Strainer

Quantity: 0 Pieces
Size: 25A
Pressure: 10K
Body Material: Bronze
Type: Strainer
  1.  REMARK: The Flange shall conform to nominal pressure 10K of JIS B2210

  2. MATERIALS


(1). Body: Bronze;

(2). Bonnet: Bronze;

(3). Wire Gauze: Stainless Steel;

(4). Stud Bolt: Steel;

(5). Hexagon Nut: Steel;

(6). Plug: Brass;

(7). Gasket: Non asbestos

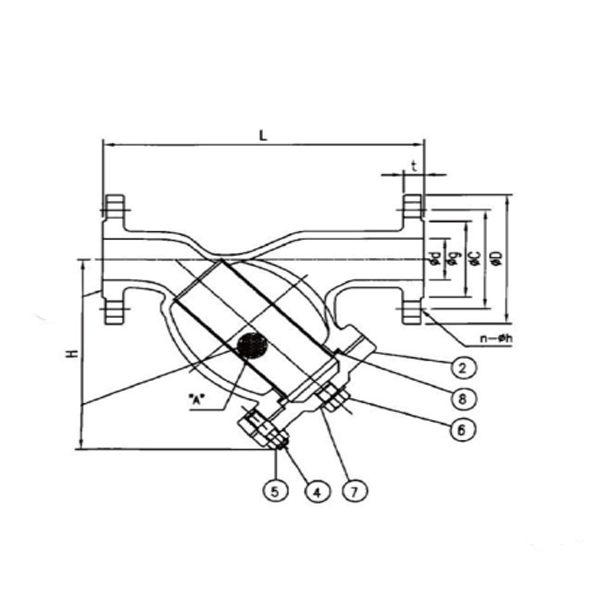

    3. Dimensions

JIS F7220

Size

d

D

C

N-h

t

L

H

kg

10K

25

25

125

90

4-19

14

225

153

6.88


JIS F7220 Bronze Marine Strainer.jpgJIS F7220 Cast Iron Marine Strainer1.jpg
