JIS KS91A-121 Cast Iron Air Vent Head Valve
  • JIS KS91A-121 Cast Iron Air Vent Head Valve
JIS KS91A-121 Cast Iron Air Vent Head Valve

JIS KS91A-121 Cast Iron Air Vent Head Valve

Quantity: 0 Pieces
Size: 80A
Pressure: 5K
Body Material: Cast Iron
Type: Air Vent Head Valve

ADVANTAGE:

  • The testing result of momentary tightness of the disc shows excelent in the condition (40 inclining).

  • The compact simples figure small area.

  • Light weight will help easy handing and have the advantage of lighting the ship.

  • Out clisc has been devised not to occur crack or demange in repeated reciprocating motion, it means out AIR VENT HEAD will not bring after servece problem in a longer actual seagoing.

MATERIALS

  1. Manufactured in accordance to JIS F7400

  2. Flanges as per JIS B2220 5K

  3. KG: 14.4kg

  4. Materials:

(1). Hex. Bolt: STS304;

(2). Top Cover: SS400;

(3). Asbestos Cushion: Asbestos;

(4). Body: FC200;

(5). Hex. Bolt:NBR;

(6) Rubber Ring: NBR;

(7). Filter: STS304;

(8). Screen Cover: SS400;

(9). Stainless Floit: STS316;

(10). Hex. Bolt: STS304;

(11). Rrubber Cushion: NBR;

(12). Cushion: STS304;

(13). Guide Bolt: STS304

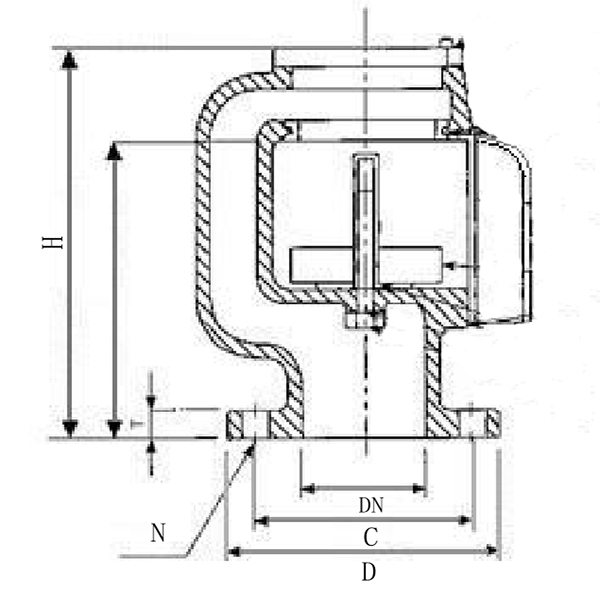

    4.Dimensions

Type

Size

D

C

A

B

H

H1

T

d

JIS KS91A-121

80A

180

145

231

158

266

173

7

80


JIS KS91A-121 Cast Iron Air Vent Head Valve.jpg53-ON 150A Air Vent Head.jpg
