JIS F7220 Cast Iron Marine Strainer
  • JIS F7220 Cast Iron Marine Strainer
JIS F7220 Cast Iron Marine Strainer

JIS F7220 Cast Iron Marine Strainer

Quantity: 0 Pieces
Size: 50A
Pressure: 5K
Body Material: Cast Iron
Type: Strainer
  1.  REMARK: The Flange shall conform to nominal pressure 5K of JIS B2210

  2. MATERIALS

(1). Body: Cast Iron;

(2). Bonnet: Cast Iron;

(3). Wire Gauze: Stainless Steel;

(4). Stud Bolt: Steel;

(5). Hexagon Nut: Steel;

(6). Plug: Brass;

(7). Gasket: Non asbestos

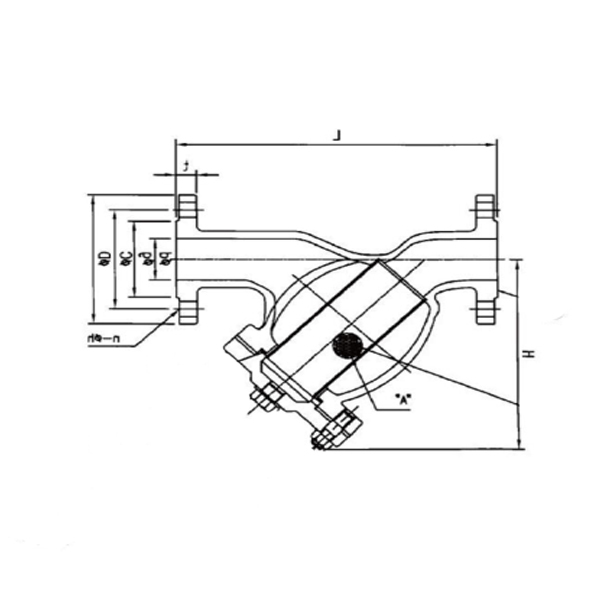

    3. Dimensions

JIS F7220

Size

d

D

C

N-h

t

L

H

kg

5K

50

50

130

105

4-15

16

320

208

15.2

JIS F7220 Cast Iron Marine Strainer.jpgJIS F7220 10K Y type Strainers.jpg
