JIS F7319 J kind of flange stop valve

JIS F7319 J kind of flange stop valve

Quantity: 0 Pieces
Size: 150A
Pressure: 5K
Body Material: Cast Steel
Type: Angle BJ Type
  1. Available medium: Steam of 300 degree and under.

  2. DN (mm): 50~300

  3. Type: AJ and BJ

  4. Materials of mai Parts

(1). Body: Cast Steel;

(2). Cover: Cast Steel;

(3). Disc: Cast Steel;

(4). Stem: Stainless Steel

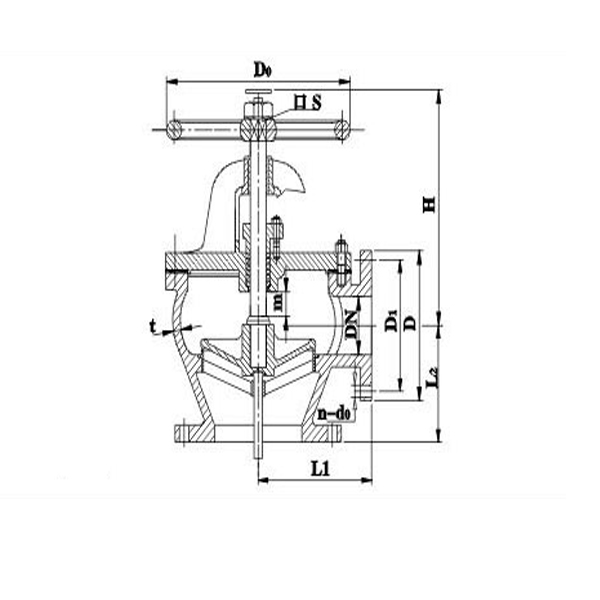

    5. Dimensions


DN

L

H

t

D

D1

b

n

d

Th

D0

S

kg

150

205

400

13

280

240

22

8

23

M20

315

27

77.1

JIS F7319 J kind of flange stop valve.jpgJIS F7319 J kind of flange stop valve1.jpg
