JIS F7399 - JIS 5K Emergency Shut-off Valve
  • JIS F7399 - JIS 5K Emergency Shut-off Valve
JIS F7399 - JIS 5K Emergency Shut-off Valve

JIS F7399 - JIS 5K Emergency Shut-off Valve

Quantity: 0 Pieces
Size: 65A
Pressure: 5K
Body Material: Cast Tin Bronze
Type: A, B
  1. The flanges of nominal diameter 40 or less shall conform to JIS B 2240-10k and the flanges of nominal diameter 50 or more shall conform to JIS B2210-5K.

  2. However they may conform to JIS B2240-5K or JIS B2210-5K

  3. Materials:

(1). Body: Cast Tin Bronze;

(2). Disc: Cast Tin Bronze;

(3). Stem: Brass

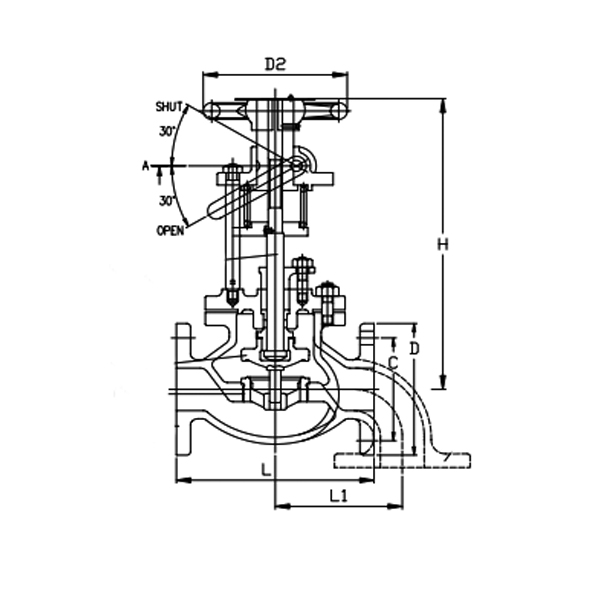

   4. Dimensions

Type

Size

D / L

C

N-h

t

L2

L1

F7399

5K

65A

155/250

130

4-15

14

100

155


JIS F7399 - JIS 5K Emergency Shut-off Valve.jpgJIS F7399 - JIS 5K Emergency Shut-off Valve1.jpg
