JIS F7334 Fire Hydrant Valve
  • JIS F7334 Fire Hydrant Valve
JIS F7334 Fire Hydrant Valve

JIS F7334 Fire Hydrant Valve

Quantity: 10 Pieces
Size: 15A
Pressure: 10K
Body Material: Bronze
Type: Straight
  1.  The flanges shall conform to nominal pressure 10K of JIS B2210

  2. Materials:

(1). Body: Cats Iron;

(2). Bonnet: Cats Iron;

(3). Disc Bronze;

(4). Disc Nut: Bronze Brass;

(5). Packing Gland:  Bronze Brass;

(6). Stem: Brass;

(7). Handwheel: Cast Iron;

(8). Hexagon Nut: Steel;

(9). Hexagon Nut: Steel;

(10). Hexagon Nut: Steel;

(11). Stud Bolt: Steel;

(12). Stud Bolt: Steel;

(13). Split Pin: Brass;

(14). Disc Lock Washer: Brass;

(15). Packing: Non Asbestos:

(16). Gasket:L Non Asbestos;

(17). Washer: steel;

(18). Base Connection: Bronze;

(19). Cap: Bronze;

(20). Coupling Ring: Bronze;

(21). Set Ring: Bronze;

(22). Set Screw: Brass;

(23). Chain: Stainless Wire;

(24). Gasket: Rubber;

(25). Gasket: Non Asbestos;

(26). Valve Seat: Bronze

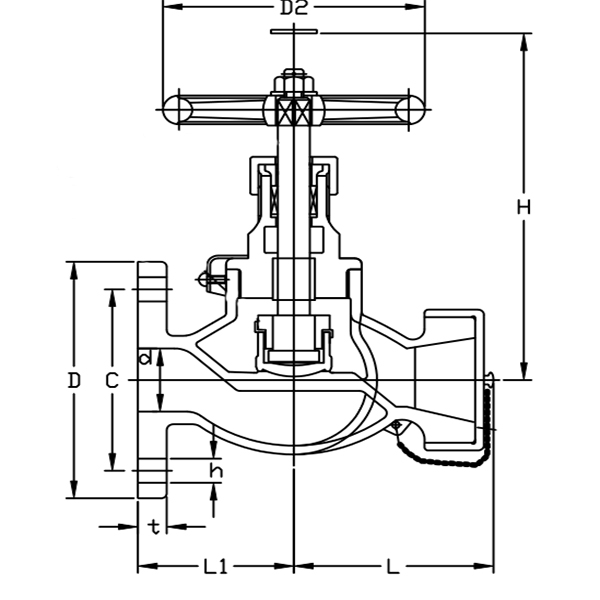

    3. Dimensions

Type

Size

L

L1

D

C

No.

h

t

H

D2

D3

F7334

10K

15

73

51

95

70

4

15

12

129

80

M42×2
