JIS F7373-JIS 10K Lift Check Globe Valve
  • JIS F7373-JIS 10K Lift Check Globe Valve
JIS F7373-JIS 10K Lift Check Globe Valve

JIS F7373-JIS 10K Lift Check Globe Valve

Quantity: 0 Pieces
Size: 125A
Pressure: 10K
Body Material: Cast Iron
Type: Straight
  1.  The flanges shall conform to nominal pressure 10K of JIS B2210

  2. Materials:

(1). Body: Cast Iron;

(2). Bonnet: Cast Iron;

(3). Disc: Bronze/ Stainless Steel;

(4). Valve Seat: Bronze/ Stainless Steel;

(5). Bush: Bronze/ Stainless Steel;

(6). Stud Bolt: Steel;

(7). Hexagon Nut: Steel;

(8). Set Screw: Steel;

(9). Gasket: Non Asbestos

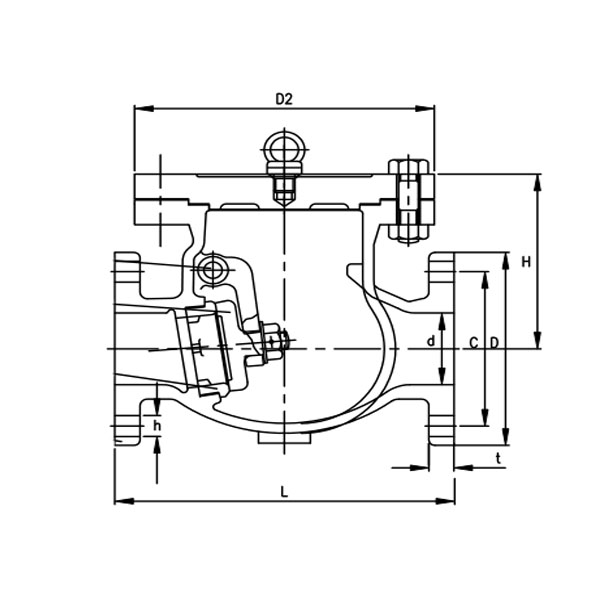

    3. Dimensions

Type

Size

D2

D

C

No.

h

t

L

H

kg

F7373

10K

125

250

250

210

8

23

24

350

180

49.2
