JIS F7359 65A Lift Check Valve
  • JIS F7359 65A Lift Check Valve
JIS F7359 65A Lift Check Valve

JIS F7359 65A Lift Check Valve

Quantity: 0 Pieces
Size: 65A
Pressure: 5K
Body Material: Cast Iron
Type: Straight
  1.  The flanges shall conform to nominal pressure 5K of JIS B2210

  2. Materials:

(1). Body: Cast Iron;

(2). Bonnet: Cast Iron;

(3). Disc: Bronze/ Stainless Steel;

(4). Valve Seat: Bronze/ Stainless Steel;

(5). Bush: Bronze/ Stainless Steel;

(6). Stud Bolt: Steel;

(7). Hexagon Nut: Steel;

(8). Set Screw: Steel;

(9). Gasket: Non Asbestos

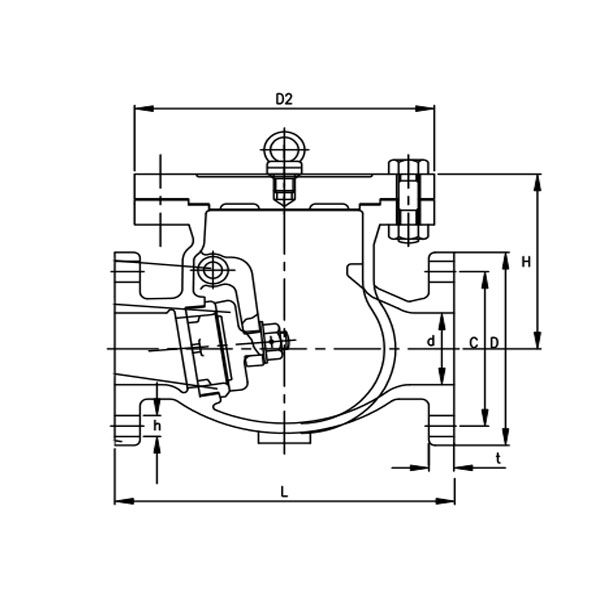

    3. Dimensions

Type

Size

d

D

c

No.

h

t

L

H

kg

F7359

5K

65

65

155

130

4

15

18

115

81

13.8

JIS F7359 65A Lift Check Valve.jpgJIS F7358-JIS 5K Lift Check Globe Valve.jpg
