JIS F7473-SDNR 32A Cast Steel Globe Valve
  • JIS F7473-SDNR 32A Cast Steel Globe Valve
JIS F7473-SDNR 32A Cast Steel Globe Valve

JIS F7473-SDNR 32A Cast Steel Globe Valve

Quantity: 0 Pieces
Size: 32A
Pressure: 20K
Body Material: Cast Steel
Type: Straight
  1. The flanges shall conform to nominal pressure 20K of JIS B 2210

  2. The name plate shall be specified by purchaser as requred

    3. Materials:

(1). Body: Cast Steel;

(2). Bonnet: Cast Steel;

(3). Hand wheel: Cast Iron;

(4). Disc: Bronze/Stainless Steel;

(5). Valve Seat: Bronze/Stainless Steel;

(6). Disc Nut: Bronze/Stainless Steel;

(7). Screw Bonnet Bush: Bronze/Stainless Steel;

(8). Bonnet Bush: Bronze/Stainless Steel;

(9). Packing Gland: Bronze;

(10). Stem: Bronze/Stainless Steel;

(11). Stud Bolt: Steel;

(12). Stud Bolt: Steel;

(13). Hexagon Nut: Steel;

(14). Hexagon Nut: Steel;

(15). Hexagon Nut: Steel;

(16). Lock Pin: Steel;

(17). Split Pin: Brass;

(18). Disc Lock Washer: Brass;

(19): Packing: Non Asbestos;

(20): Gasket: Non Asbestos;

(21). Washer: Steel

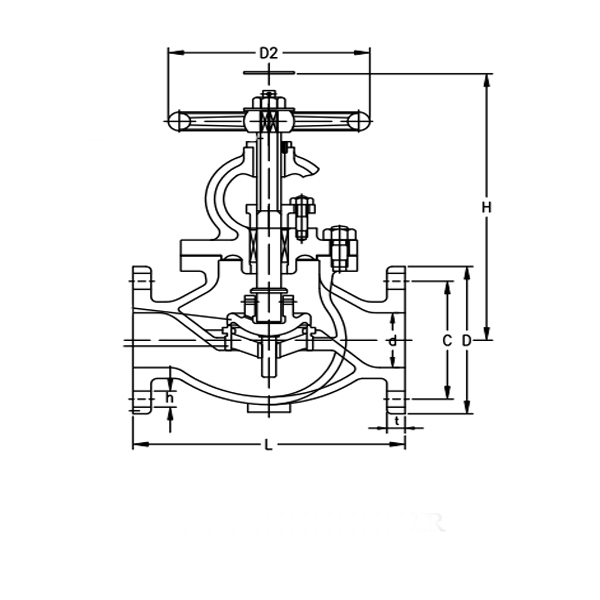

    4. Dimensions

Type

Size

L

D

C

No.

h

t

H

D2/kg

F743

10K

32

190

135

100

4

19

18

470

160/14.4
