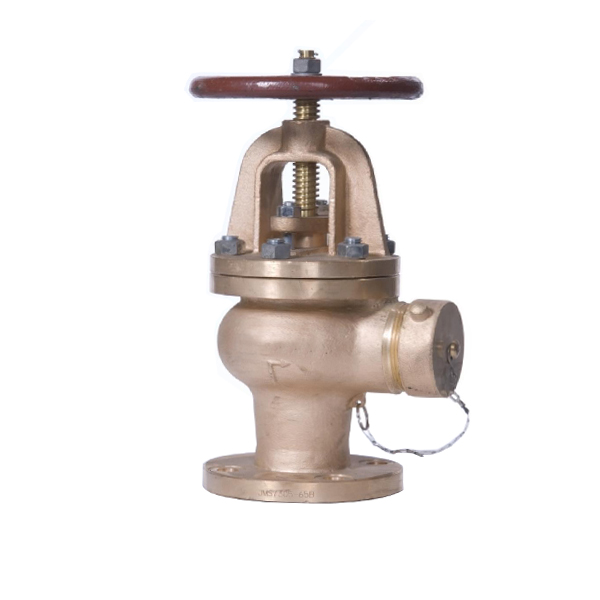

JIS F7410 32A Bronze Angle Valve
  • JIS F7410 32A Bronze Angle Valve
JIS F7410 32A Bronze Angle Valve

JIS F7410 32A Bronze Angle Valve

Quantity: 0 Pieces
Size: 15A
Pressure: 16K
Body Material: Bronze
Type: Angle
  1.   The flanges shall conform to nominal pressure 16K of JIS B 2210

  2. The name plate shall be specified by purchaser as required

  3. Materials:

(1). Body: Bronze;

(2). Bonnet:   Bronze;

(3). Hand wheel:  Cast Iron;

(4). Disc: Bronze/Stainless Steel;

(5). Valve Seat: Bronze/Stainless Steel;

(6). Disc Nut: Bronze/Stainless Steel;

(7). Screw Bonnet Bush: Bronze/Stainless Steel;

(8). Bonnet Bush: Bronze/Stainless Steel;

(9). Packing Gland: Bronze;

(10). Stem: Bronze/Stainless Steel;

(11). Stud Bolt: Steel;

(12). Stud Bolt: Steel;

(13). Hexagon Nut: Steel;

(14). Hexagon Nut: Steel;

(15). Hexagon Nut: Steel;

(16). Lock Pin: Steel;

(17). Split Pin: Brass;

(18). Disc Lock Washer: Brass;

(19). Packing: Non Asbestos;

(20). Gasket: Non Asbestos;

(21). Washer: Steel

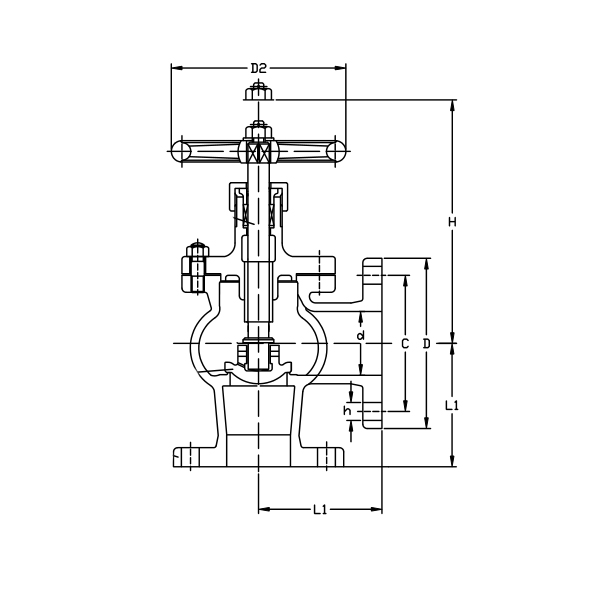

    4. Dimensions

Type

Size

D2

D

C

N-h

t

L1

H

kg

F7410

16K

15A

80

80

60

4-12

9

55

120

23


JIS F7318 32A Bronze Angle Valve .jpgJIS F7410 15A Bronze Angle Valve 1.jpg
