CMB1048 DN65 Cast Steel Flanged Stop Valve
  • CMB1048 DN65 Cast Steel Flanged Stop Valve
CMB1048 DN65 Cast Steel Flanged Stop Valve

CMB1048 DN65 Cast Steel Flanged Stop Valve

Quantity: 0 Pieces
Size: DN65
Pressure: 1.0 MPa
Body Material: Cast Steel
Type: A
  1. Available medium: Fresh water, Lubricant oil, Fuel oil, Steam of 300℃

  2. Materials of main Parts:

(1). Bode: Cast Steel;

(2). Cover: Cast Steel;

(3). Disc: High-qualite Carbon steel;

(4). Stem: Stainless steel;

(5). Disc seal ring: Stainless steel

   3. Dimensions

DN

L

H

D

C

g

h

t

n

Th.

D

s

m

kg

65

270

310

175

140

120

19

18

4

M16

140

12

19

15.9

CMB1048 DN65 Cast Steel Flanged Stop Valve .jpg

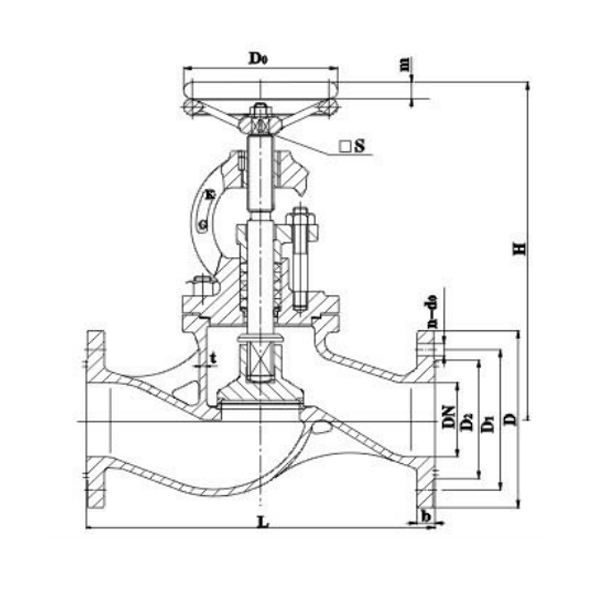

    4. Drawing

GBT588 DN50 Stop Check Valve1.jpg
