GBT584 DN200 Stop Valve
  •  GBT584 DN200 Stop Valve
 GBT584 DN200 Stop Valve

GBT584 DN200 Stop Valve

Quantity: 1 Pieces
Size: DN200
Pressure: 1.6 MPa
Body Material: Cast Steel
Type: AS
  1.  Applicable Medium: Fresh Water, Lubricanting oil, Fuel oil,t≤300℃ Steam.

  2. Materials of Main Parts

(1). Body: Cast Steel;

(2). Disc: High-Quality Carbon Steel;

(3). Stem: Stainless Steel;

(4). Disc Sesl Ring: Weld Stainless Steel;

(5). Body Seal Ring: Weld Stainless Steel

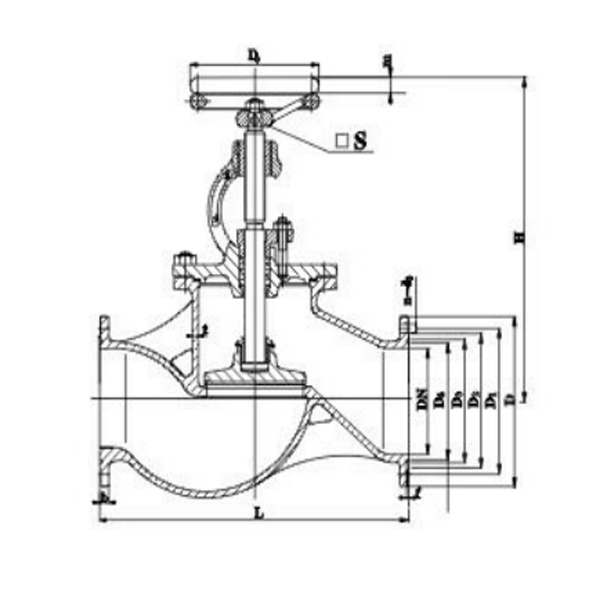

    3. Dimensions

PN

(MPa)

DN

(mm)

L

(AS)

H

(AS)

D

D1

D2

d

b

Th.

n

D

S

m

kg

1.6

200

600

643

340

295

268

22

24

M20

12

450

32

68

121.0
