GB2030 DN400 Suction Sea Valve
  • GB2030 DN400 Suction Sea Valve
GB2030 DN400 Suction Sea Valve

GB2030 DN400 Suction Sea Valve

Quantity: 1 Pieces
Size: DN400
Pressure: 0.4 MPa
Body Material: Cast Tin Bronze
Type: Angle
  1.  Applicable Medium: Sea Water


  2. Materials of Main Parts:

(1). Body: Cast Tin Broze;

(2). Cover: Cast Tin Broze;

(3). Disc: Cast Tin Broze;

(4). Stem: Aluminum Bronze

    3. Dimensions

DN(mm)

L

H

D

D1

D2

d

b

Th.

n

D

m

kg

400

380

960

530

486

460

22

21

M20

16

500

110

299.0

GB2030 DN400 Suction Sea Valve.jpg

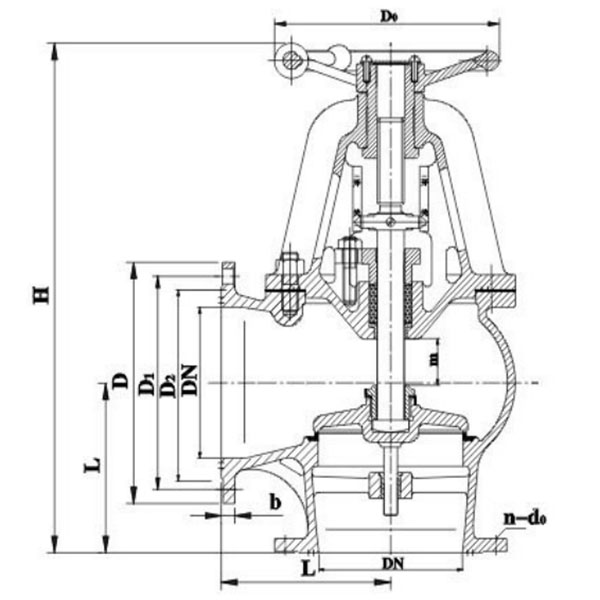

     4. Drawing

GB2030 DN400 Suction Sea Valve.jpg
