GBT1951-1984 Marine external screwed stop valve
  • GBT1951-1984 Marine external screwed stop valve
GBT1951-1984 Marine external screwed stop valve

GBT1951-1984 Marine external screwed stop valve

Quantity: 0 Pieces
Size: DN20
Pressure: 1.6 MPa
Body Material: Bronze
Type: A
  1. Available medium: Sea water,Fresh water, Lubricant oil, Steam of 250 degree and under.

  2. DN: 6 ~ 32(mm)

  3. Materials of main Parts:

(1). Body: Aluminum Bronze and Stainless Steel;

(2). Cover: Cast Tin Bronze;

(3).  Disc: Cast Tin Bronze;

(4). Body: Cast Tin Bronze

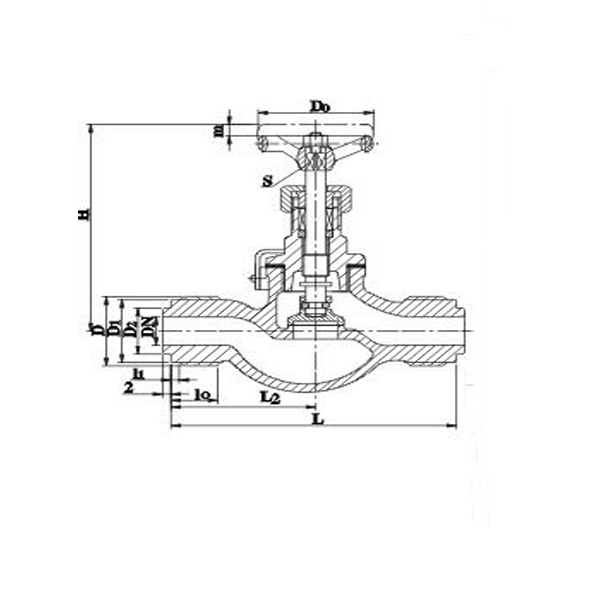

    4. Dimensions

DN

L

H ≈

D

D1

D2

L

L1

D

S

m

kg

20

110

112

M18×2

33

24

19

3

65

7

6

0.98

GBT1951-1984 Marine external screwed stop valve.jpgGBT1951-1984 Marine external screwed stop valve1.jpg
