CB907-94 external screwed angle type liquid safety valve
  • CB907-94 external screwed angle type liquid safety valve
CB907-94 external screwed angle type liquid safety valve

CB907-94 external screwed angle type liquid safety valve

Quantity: 0 Pieces
Size: DN10
Pressure: 0.25 MPa
Body Material: Bronze
Type: Angle
  1. Available medium: Fresh water, Sea water, Lubricant oil and Fuel oil

  2. DN: 10 ~ 25 (mm)

  3. Materials of main Parts:

(1). Body: Bronze;

(2). Cover: Aluminum Bronze;

(3). Stem: Aluminum Bronze

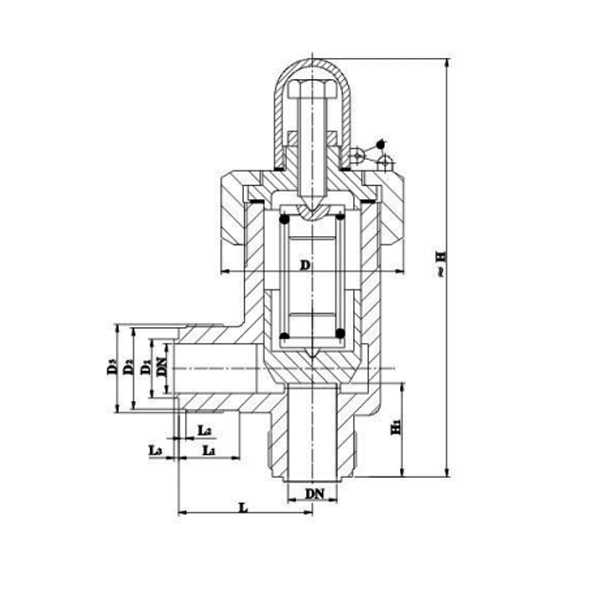

    4. Dimensions

DN

L

D

H1

H

D1

D2

D3

L1

L2

L3

kg

10

40

55

30

138

13

19.8

M22×1.5

17

2

2

1.3

 CB907-1994 Bronze external screwed angle type liquid safety valve.jpgCB907-1994 Bronze external screwed angle type liquid safety valve1.jpg
