| Quantity: 0 Pieces |
| Size: DN40 |
| Pressure: 0.6 |
| Body Material: Cast Tin Bronze |
| Type: AS |
Applicable Medium: Sea water, Fresh water, Oil
Materials of Main Parts
(1). Body: Cast Tin Bronze;
(2). Cover: Cast Tin Bronze;
(3). Disc: Cast Tin Bronze;
(4). Stem: Aluminum Bronze;
(5). Nut: Aluminum Bronze

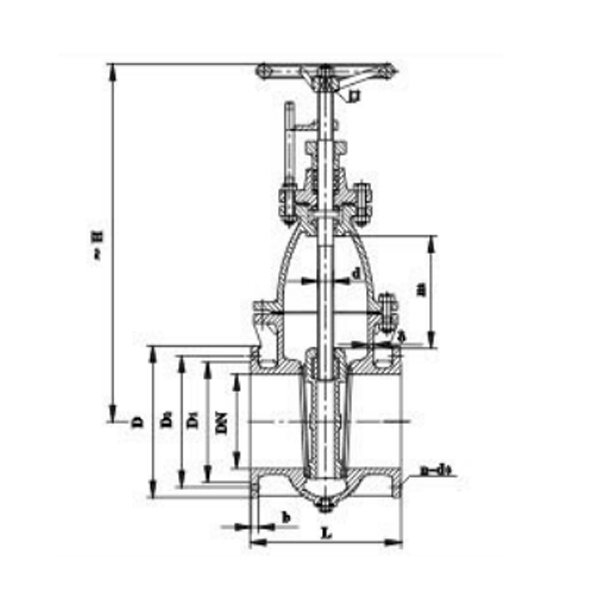

2. Dimensions
PN (MPa) | DN (mm) | L | H | D | D1 | D2 | b | dₒ | n | Th. | d | Dₒ | m | kg |
0.6 | 40 | 170 | 330 | 125 | 93 | 74 | 13 | 15 | 6 | M14 | Tr20×8(P4)LH | 160 | 48 | 15 |
