CBT466 Cast Steel Gate Valve
  • CBT466 Cast Steel Gate Valve
CBT466 Cast Steel Gate Valve

CBT466 Cast Steel Gate Valve

Quantity: 0 Pieces
Size: DN50
Pressure: 1.0 MPa
Body Material: Cast Steel
Type: A
  1.  Available Medium: Sea water, Fresh water, Lubricanting oil

  2. Materials of Main Parts:

(1). Body: Cast Steel;

(2). Cover : Cast Steel;

(3). Disc:  Cast Steel;

(4). Stem: Stainless Steel;

(5). Nut: Aluminum Bronze;

(6). Seal Ring: Stainless Steel

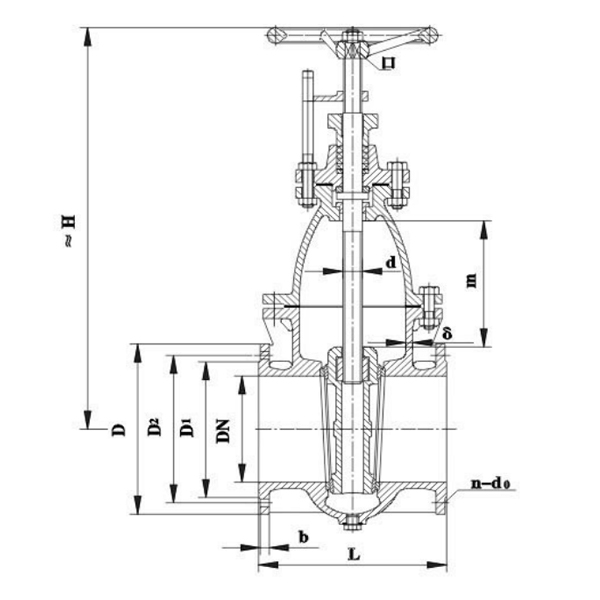

   3. Dimensions

PN

(MPa)

DN

(mm)

L

H

D

D1

D2

b

d

n

Th.

thickness

    d

D

m

kg

1.0

50

190

340

130

103

84

13

15

6

M14

     8

Tr22×10(P5)LH

180

60

18
