GBT594-93 Marine cast iron check valves
  • GBT594-93 Marine cast iron check valves
GBT594-93 Marine cast iron check valves

GBT594-93 Marine cast iron check valves

Quantity: 0 Pieces
Size: DN50
Pressure: 1.6 MPa
Body Material: Cast Iron
Type: A and AS
  1. Available medium: Fresh water, Sea water, Lubricant oil, Fuel oil, Steam of 220 degree and under.

  2. DN(mm): 20~50

  3. Materials of main Parts

(1). Body: Cast Iron;

(2). Disc: Cast Tin Bronze;

(3). Seat: Cast Aluminium Bronze

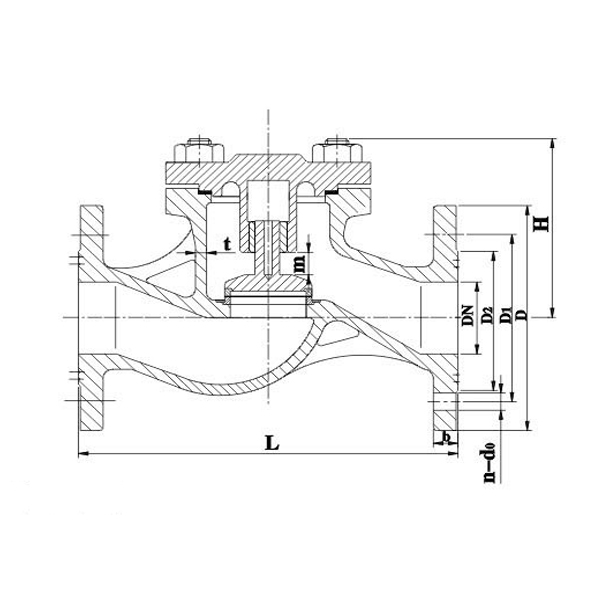

    4. Dimensions

DN

L

H

t

D

D1

D2

d

b

n

Th

m

kg

50

230

117

8

135

103

84

15

16

6

M14

15

8.9

GBT594-93 Marine cast iron check valves.jpgGBT592-1993 Marine Cast Iron Check Valve1.jpg
