CBT306-1999 Marine interior whorl bronze stop valve
  • CBT306-1999 Marine interior whorl bronze stop valve
CBT306-1999 Marine interior whorl bronze stop valve

CBT306-1999 Marine interior whorl bronze stop valve

Quantity: 0 Pieces
Size: DN32
Pressure: 1.6 MPa
Body Material: Cast Steel
Type: A
  1. Available medium: Sea water, Fresh water, Fuel oil, Lubricante oil, Steam of 205 degree and under.

  2. DN(mm): 6~50

  3. Materials of mai Parts

(1). Body: Cast Steel;

(2). Cover: Cast Steel;

(3). Disc: Cast Steel;

(4). Stem: Cast Steel;

(5). Hand Wheel: Cast Iron

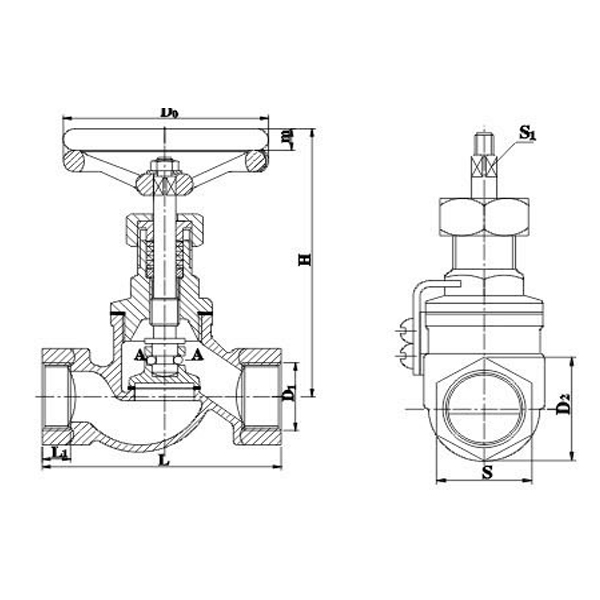

    4. Dimensions

DN

L

H

H1

D1

S

L1

D

S1

m

kg

32

130

139

54

G1 1/4

50

20

80

8

8

2.22

CBT306-1999 Marine interior whorl bronze stop valve.jpgCBT306-1999 Marine interior whorl bronze stop valve1 (2).jpg
