GBT588 DN50 Stop Check Valve

GBT588 DN50 Stop Check Valve

Quantity: 3 Pieces
Size: DN50
Pressure: 0.6 MPa
Body Material: Cast Tin Bronze
Type: AS
  1.   Applicable Medium: Sea Water, Fresh Water, Lubricanting oil, Fuel oil,t≤250℃ Steam.

  2. Materials of Main Parts:

(1). Body: Cast Tin Bronze;

(2). Cover: Cast Tin Bronze;

(3). Disc: Cast Tin Bronze;

(4). Stem: Aluminum Bronze

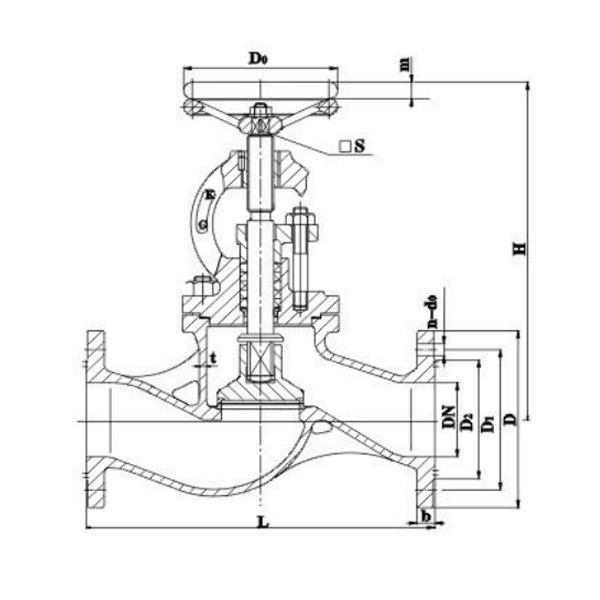

    3. Dimensions

PN

(MPa)

DN

(mm)

L

(AS)

H

(AS)

thickness

D

D1

D2

d

b

Th.

n

D

S

m

kg

0.6

50

230

288

5

140

110

90

14

17

M12

4

140

12

14

11.0

GBT588 DN50 Stop Check Valve.jpgGBT588 DN50 Stop Check Valve1.jpg
