Quantity: 1 Pieces |
Size: DN40 |
Pressure: 1.0 MPa |
Body Material: Cast Tin Bronze |
Type: AS |
Applicable Medium: Sea Water, Fresh Water
Materials of Main Parts:
(1). Body: Cast Tin Bronze, Cast Silicon Brass;
(2). Cover: Cast Tin Bronze, Cast Silicon Brass;
(3). Disc: Cast Tin Bronze, Cast Silicon Brass;
(4). Stem: Aluminum Bronze;
(5). Seal Face: Cast Tin Bronze, Cast Silicon Brass
3. Dimensions
DN (mm) | L (AS) | L1 (AS) | H1 (AS) | L2 | H1 | thickness | D | D1 | D2 | b | dₒ | n | Th. | Dₒ | S | m | kg |
40 | 225 | 80 | 181 | 80 | 65 | 5 | 150 | 110 | 88 | 16 | 18 | 4 | M16 | 120 | 11 | 14 | 7.25 |

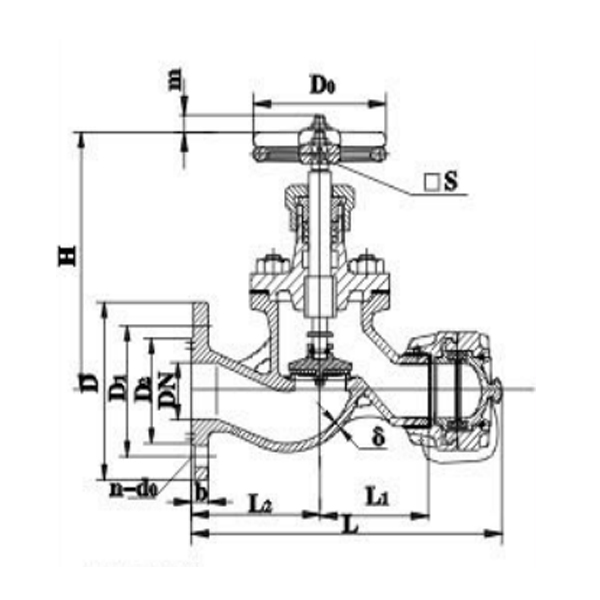

4. Drawing
