CBT3191-1992 High-pressured manual ball valve
  • CBT3191-1992 High-pressured manual ball valve
CBT3191-1992 High-pressured manual ball valve

CBT3191-1992 High-pressured manual ball valve

Quantity: 0 Pieces
Size: DN10
Pressure: 6.4 to 10.0 MPa
Body Material: Aluminum Bronze and Carbon Steel
Type: A
  1. Available Medium: Air, Carbon Dioxide, Hydraulic Pressure.

  2. DN ( mm): 10 to 32

  3. PN (Mpa): 6.4 to 10.0

  4. Materials of main Parts:

(1). Body:  Carbon Steel;

(2). Attachment: Carbon Steel;

(3). Spheroid: Aluminum Bronze;

(4). Stem: Stainless Steel

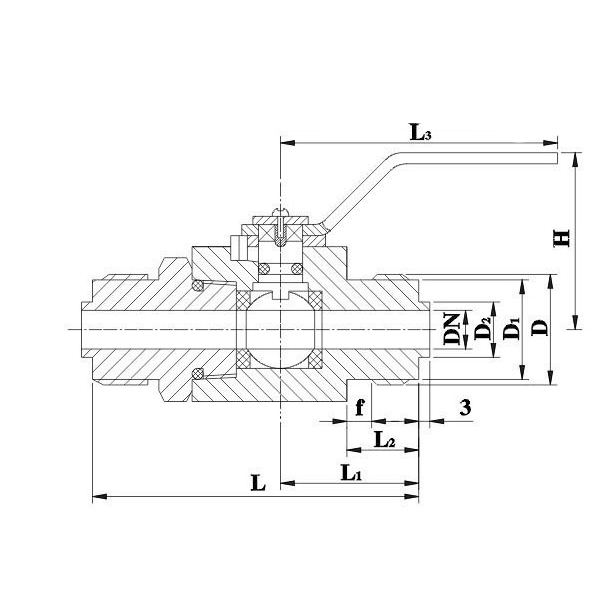

   5. Dimensions


Mpa

DN

L

H

D

D3

L1

L2

L3

f

D1

D2

kg

6.4

10

88

64

M27×1.5

13

37

19

100

3

24.8

14

0.81

CBT3191-1992 High-pressured manual ball valve.jpgCBT3191-1992 High-pressured manual ball valve1.jpg
