CBT585 DN40 Cast Steel SDNR Valve
  • CBT585 DN40 Cast Steel SDNR Valve
CBT585 DN40 Cast Steel SDNR Valve

CBT585 DN40 Cast Steel SDNR Valve

Quantity: 0 Pieces
Size: DN40
Pressure: 2.5 MPa
Body Material: Cast Steel
Type: AS
  1. Available medium: Sea water, Fresh water.

  2. Materials of Main Part:

(1). Body: Cast Steel;

(2). Cover: Cast Steel;

(3). Disc: Cast Aluminum Bronze;

(4). Stem: Aluminum Bronze

   3. Dimensions

PN

(MPa)

DN

(mm)

L

H

t

D

D1

D2

d

b

n

Th.

D

S

m

kg

2.5

40

200

260

7.0

125

93

74

15

13

6

M14

120

11

11

9.2

CBT585 DN40 Cast Steel SDNR Valve.jpg

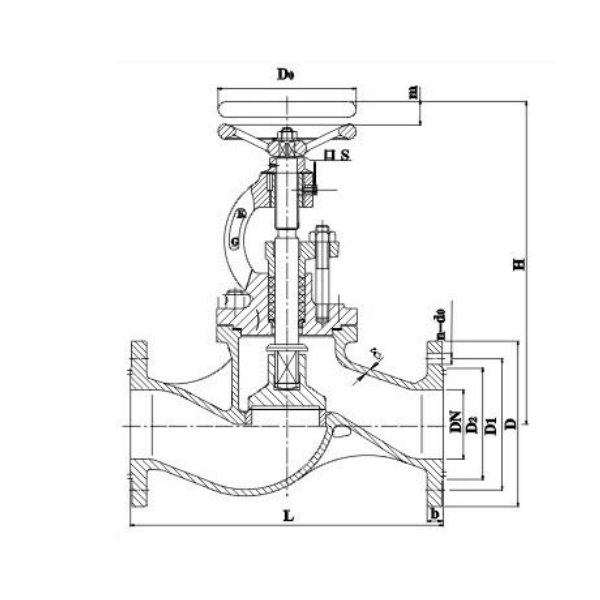

    4. Drawing

CBT585 DN40 Cast Steel SDNR Valve1.jpg
