| Quantity: 0 Pieces |
| Size: DN25 |
| Pressure: 0.5 MPa |
| Body Material: Cast Tin Bronze |
| Type: Straight |
Available medium: Oil, Pulsation water.
DN: 15 ~ 40
Maximal actuating pressure: 0.5, 0.2, 0.7MPa
Material of main Parts:
(1). Body: Csat Tin Bronze;
(2), Cover: Cast Tin Bronze;
(3). Hand Wheel: Cast Iron;
(4). Stem: Lead Brass

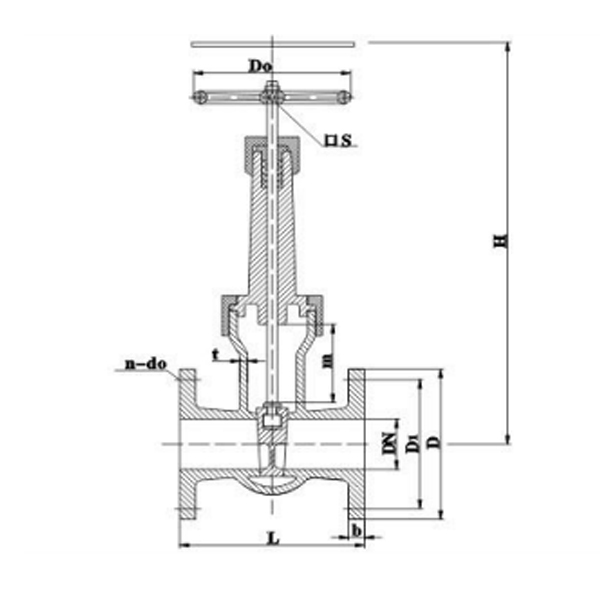

5. Dimensions
DN | S | H | L | t | D | D1 | dₒ | b | n | Th | Dₒ | m | kg |
100 | 8 | 220 | 110 | 4.5 | 95 | 75 | 12 | 10 | 4 | M10 | 80 | 27.0 | 2.98 |
