| Quantity: 0 Pieces |
| Size: DN 100 |
| Pressure: 1.0MPa |
| Body Material: Cast iron |
| Type: SG |
Available Medium: Sea water, Fresh water, Air, Crude oil and fnished oil that temperature is 70 and under.
Materials of Main Parts:
(1). Body: Cast iron;
(2). Disc: Aluminum;
(3). Stem: Stainless steel
3. Dimensions
PN (Mpa) | DN | H | H1 | L | D | D1 | D2 | n | Th. |
1.0 | 100 | 360 | 135 | 52 | 190 | 158 | 138 | 8 | M14 |

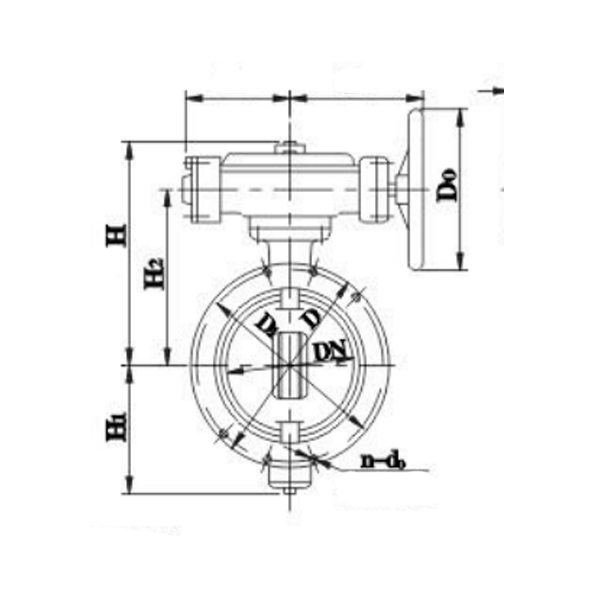

4. Drawing
