Worm Gear Lug Type Butterfly Valve

Worm Gear Lug Type Butterfly Valve

Worm Gear Lug Type Butterfly Valve

Quantity: 0 Pieces

Size: DN150

Pressure: 1.0MPa

Body Material: Cast iron

Type: FSG

Contact Now

Download Product Catalog

Product Description

Send your message to this supplier

Dimensions

PN

(Mpa)

DN

H

H1

L1

L

D

D1

D2

n

Th.

1.0

150

430

165

180

70

280

240

207

8

M20

Worm Gear Lug Type Butterfly Valve.jpg

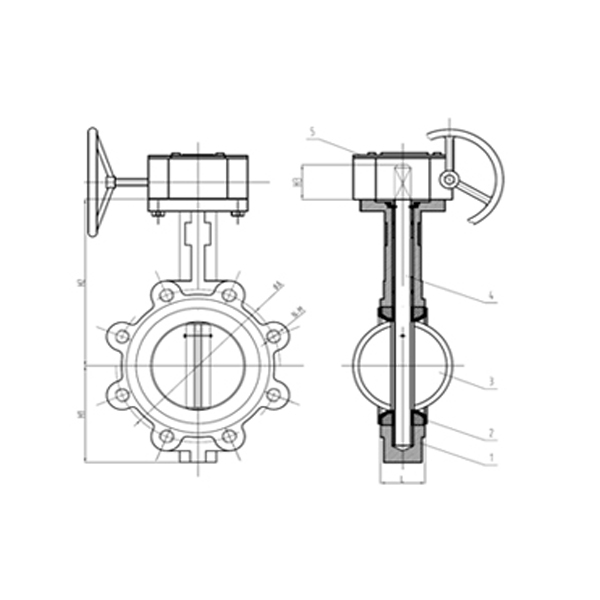

2. Drawing

Worm Gear Lug Type Butterfly Valve.jpg
