| Quantity: 1 Pieces |
| Size: DN400 |
| Pressure: 1.0 MPa |
| Body Material: Nodular Cast Iron |
| Type: AS |
Applicable Medium: Sea water, Fresh water, Oil
Materials of Main Parts:
(1). Body: Nodular Cast Iron QT400-15;
(2). Cover: Nodular Cast Iron QT400-15;
(3). Disc: Cast Steel ZG230-450;
(4). Stem: Aluminum Bronze CuAI9Mn2;
(5). Nut: Aluminum Bronze CuAI9Mn2;
(6). Seal Ring: Stainless Steel 1C18Ni9Ti / 2Cr13
3. Diamensions
Size | L | H | thickness | D | D1 | D2 | dₒ | b | Th. | n | d1 | S | Dₒ | M | kg |
400 | 406 | 1100 | 19 | 565 | 515 | 482 | 26 | 32 | M24 | 16 | Tr50×16(P8)LH | 36 | 500 | 420 | 407.0 |

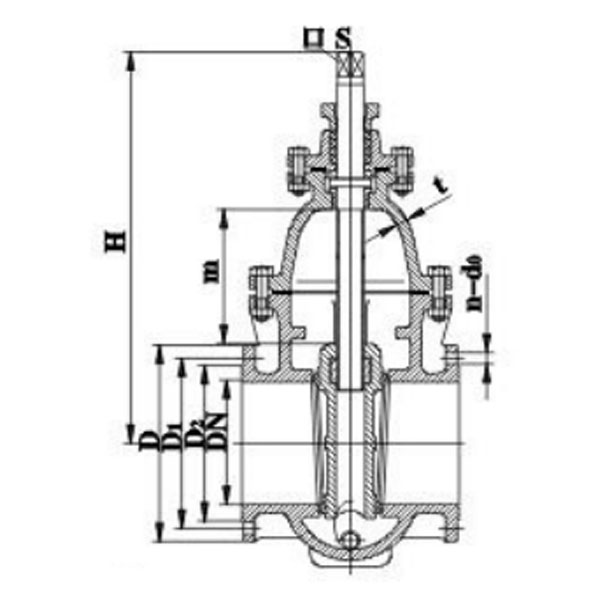

4. Drawing
