JIS F7471 200A Screw-Down Check Valve
  • JIS F7471 200A Screw-Down Check Valve
JIS F7471 200A Screw-Down Check Valve

JIS F7471 200A Screw-Down Check Valve

Quantity: 5 Pieces
Size: 200A
Pressure: 10K
Body Material: Cast Steel
Type: Straight
  1.  The flanges shall conform to nominal pressure 10K of JIS B2210

  2. The name plate shall be specified by purchaser as required

  3. Materials:

(1). Body: Cast Steel;

(2). Bonnet: Cast Steel;

(3). Handwheel: Cast Iron;

(4). Disc: Bronze/Stainless Steel;

(5). Valve Seat: Bronze/Stainless Steel;

(6). Packing Bush: Bronze/Stainless Steel;

(7). Stem: Bronze/Stainless Steel;

(8). Washer For Stem: Bronze/Stainless Steel;

(9). Bonnet Bush: Bronze;

(10). Packing Bush: Bronze;

(11). Packing Gland: Steel;

(12). Stud Bolt: Steel;

(13). Stud Bolt: Steel;

(14). Hexagon Nut: Steel;

(15). Hexagon Nut: Steel;

(16). Hexagon Nut: Steel;

(17). Lock Pin: Steel;

(18). Split Pin: Brass;

(19).Disc Lock Washer: Brass/Stainless Steel;

(20). Packing: Non Asbestos;

(21). Gasket: Non Asbestos

(22). Washer: Steel

    4. Dimensions

Type

Size

d

D

C

N-h

t

L

H

kg

F7471

10K



200A

200

330

290

12-23

22

570

565

159

JIS F7471 200A Screw-Down Check Valve.jpg

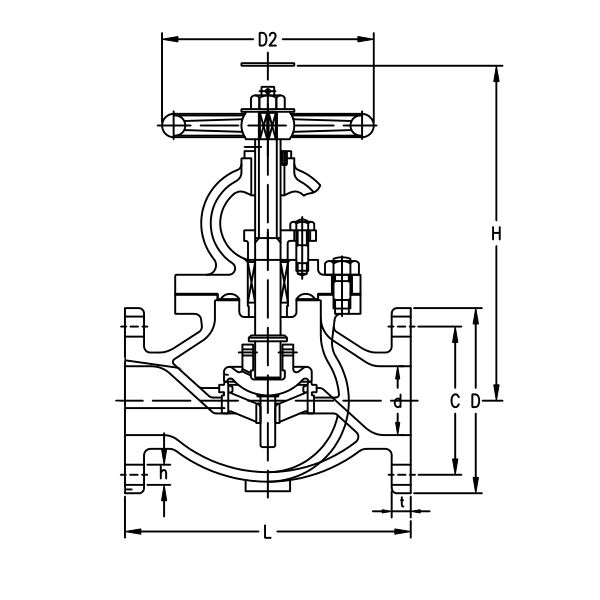

   5. Drawing

JIS F7471 200A Screw-Down Check Valve1.jpg
