JIS F3019 Self Closer Gate Valve
  • JIS F3019 Self Closer Gate Valve
JIS F3019 Self Closer Gate Valve

JIS F3019 Self Closer Gate Valve

Quantity: 0 Pieces
Nominal Size: PF2
Nominal Dia: 40, 50, 65, 80
Body Material: Bronze
  1. Materials:

(1). Body: Bronze;

(2). Valve: Bronze;

(3). Spindle for Handle: Brass,

(4). Lever: Bronze;

(5). Packing Gland: Bronze;

(6). Handle: Cast Iron;

(7). Washer: Brass Platf;

(8). Hexagon Nut: Brass;

(9). Split Pin: Brass;

(10). Coil Spring: PWB;

(11). Cap: BC6;

(12). Gasket: Rubber;

(13). Packing: Rubber;

(14). Chian: Brass;

(15). Cover: Bronze;

    2. Dimensions


Nominal Dia

d

d4

d6

40

PF

PF

M60×2

JIS F3019 Self Closer Gate Valve.jpg

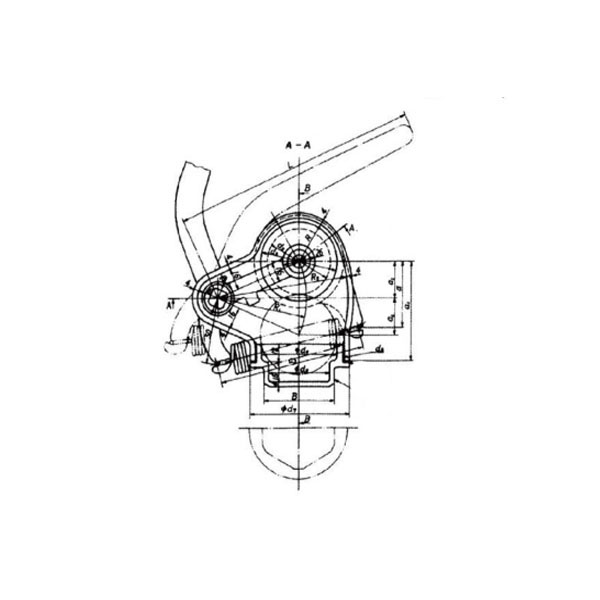

     3. Drawing

JIS F3019 Self Closer Gate Valve.jpg
