JIS F7334 40A Bronze Hose Valve Bolted Bonnet
  • JIS F7334 40A Bronze Hose Valve Bolted Bonnet
JIS F7334 40A Bronze Hose Valve Bolted Bonnet

JIS F7334 40A Bronze Hose Valve Bolted Bonnet

Quantity: 20 Pieces
Size: 40A
Pressure: 5K
Body Material: Bronze
Type: Straight
  1. The flanges shall conform to nominal pressure 5K and 10K of JIS B2210

  2. Materials:

(1). Body: Bronze;

(2). Bonnet: Bronze;

(3). Disc Bronze;

(4). Disc Nut: Bronze Brass;

(5). Packing Gland:  Bronze Brass;

(6). Stem: Brass;

(7). Handwheel: Cast Iron;

(8). Hexagon Nut: Steel;

(9). Hexagon Nut: Steel;

(10). Hexagon Nut: Steel;

(11). Stud Bolt: Steel;

(12). Stud Bolt: Steel;

(13). Split Pin: Brass;

(14). Disc Lock Washer: Brass;

(15). Packing: Non Asbestos:

(16). Gasket:L Non Asbestos;

(17). Washer: steel;

(18). Base Connection: Bronze;

(19). Cap: Bronze;

(20). Coupling Ring: Bronze;

(21). Set Ring: Bronze;

(22). Set Screw: Brass;

(23). Chain: Stainless Wire;

(24). Gasket: Rubber;

(25). Gasket: Non Asbestos;

(26). Valve Seat: Bronze

     3. Dimensions

Type

Size

L

L1

D

C

No.

h

t

H

D2

D3

F7334

5K

40

124

85

120

95

4

15

12

193

140

M52×2




                                                                Bolted Bonnet

JIS F7334 5K 40A Bronze Hose Valve(Bolted Bonnet).jpg

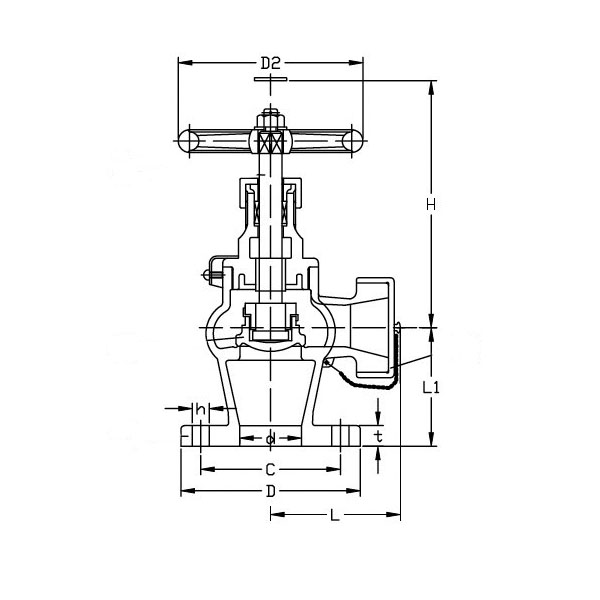

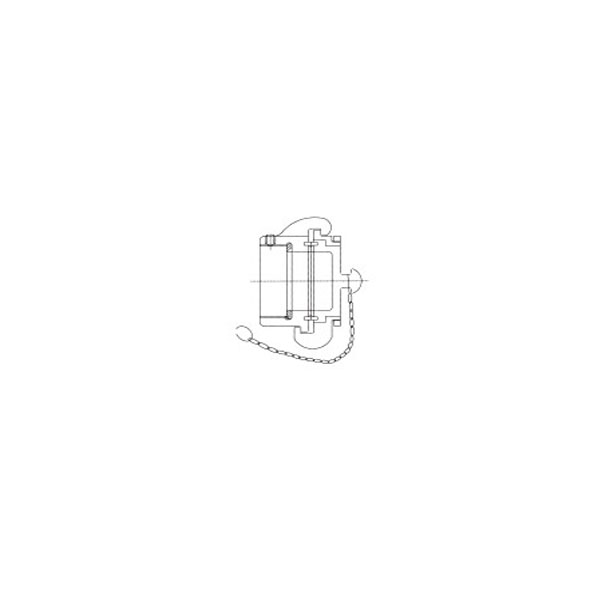

      4. Drawing                                                                                                                                                                                     Nakajima Coupling

JIS F7334 5K 40A Bronze Hose Valve(Bolted Bonnet).jpgJIS F7334 5K 40A Bronze Hose Valve(Bolted Bonnet).jpg
