JIS F7306 500A CAST IRON ANGLE VALVE

Quantity: 0 Pieces
Size: 500A
Pressure: 5K
Body Material: Cast Iron
Type: Angle
  1.  The flanges shall conform to nominal pressure 20K of JIS B2210

  2. The name plate shall be specified by purchaser as required

  3. Materials:

(1). Body: Cast Iron;

(2). Seat: Stainless Iron;

(3). Disc: Stainless Iron;

(4). Stem: Stainless Iron

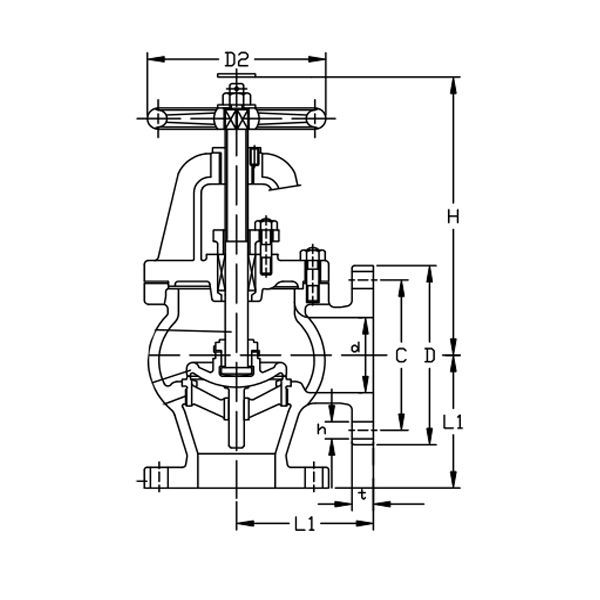

   4. Dimensions

Type

Size

L1

D

C

No.

h

t

H

D2/kg

F7306

5K

500

485

655

605

20

25

32

915

710/800


JIS F7306 Angle Valve1.jpgJIS F7306 Angle Valve1.jpg
