Quantity: 9 Pieces |
Size: 65A |
Pressure: 5K |
Body Material: Cast Iron |
Type: Straight |
The flanges shall conform to nominal pressure 5K and 10K of JIS B2210
Materials:
(1). Body: Cast Iron;
(2). Bonnet: Cast Iron;
(3). Disc Bronze;
(4). Disc Nut: Bronze Brass;
(5). Packing Gland: Bronze Brass;
(6). Stem: Brass;
(7). Handwheel: Cast Iron;
(8). Hexagon Nut: Steel;
(9). Hexagon Nut: Steel;
(10). Hexagon Nut: Steel;
(11). Stud Bolt: Steel;
(12). Stud Bolt: Steel;
(13). Split Pin: Brass;
(14). Disc Lock Washer: Brass;
(15). Packing: Non Asbestos:
(16). Gasket:L Non Asbestos;
(17). Washer: steel;
(18). Base Connection: Bronze;
(19). Cap: Bronze;
(20). Coupling Ring: Bronze;
(21). Set Ring: Bronze;
(22). Set Screw: Brass;
(23). Chain: Stainless Wire;
(24). Gasket: Rubber;
(25). Gasket: Non Asbestos;
(26). Valve Seat: Bronze
3. Dimensions
Type | Size | d | D | C | N-h | t | L1 | L | H | H1 | kg |
F7334 5K
| 65A | 60 | 155 | 130 | 4-15 | 22 | 135 | 130 | 310 | 270 | 28.2 |

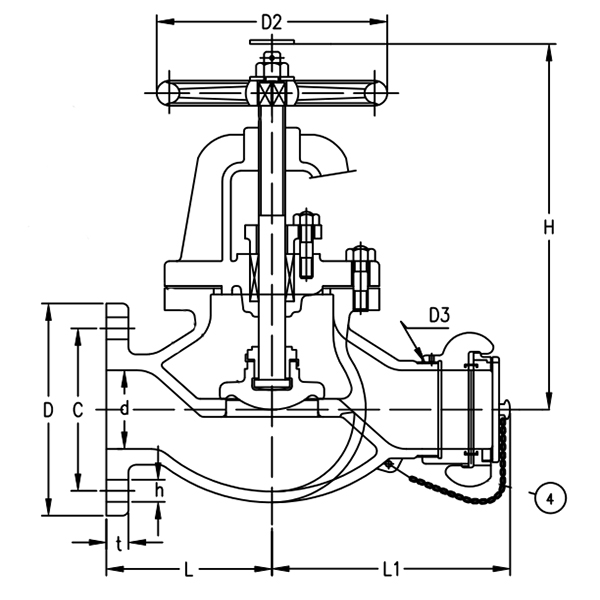

4. Drawing
