JIS F7334 J kind of flange bronze hose valve
  • JIS F7334 J kind of flange bronze hose valve
JIS F7334 J kind of flange bronze hose valve

JIS F7334 J kind of flange bronze hose valve

Quantity: 24 Pieces
Size: 25A
Pressure: 5K
Body Material: Cast Tin Bronze
Type: Straight AJ Type
  1. Available medium: Seam of 205 degree and under, Air or other gas, Pulsation water.

  2. DN: 25(mm)

  3. Materials of main Parts

(1). Body: Cast Tin Bronze;

(2). Cover: Cast Tin Bronze;

(3). Disc: Cast Tin Bronze;

(4). Stem: Brass

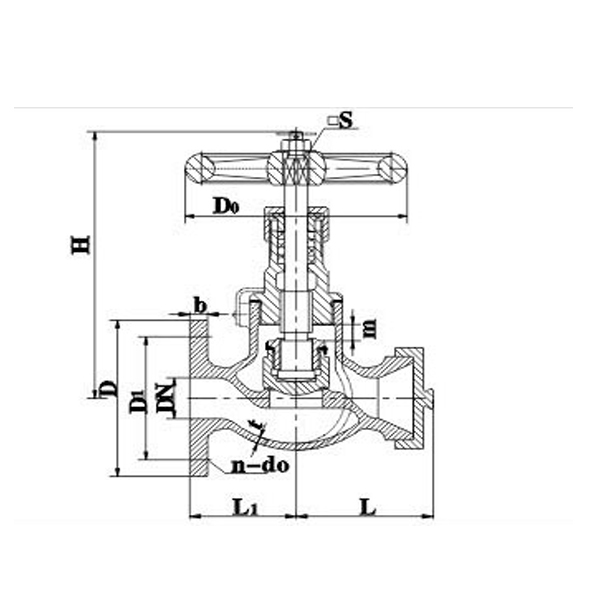

    4. Dimensions

DN

L

L1

H

t

D

D1

b

d

n

D

S

Th

m

kg

25

78

60

160

4

95

75

10

12

4

125

10

M10

8

3.55

JIS F7334 J kind of flange bronze hose valva.jpgJIS F7334 J king of flange bronze hose saddle11.jpg
