JIS F7371 25A Cast Tin Bronze Swing Check Valve
  • JIS F7371 25A Cast Tin Bronze Swing Check Valve
JIS F7371 25A Cast Tin Bronze Swing Check Valve

JIS F7371 25A Cast Tin Bronze Swing Check Valve

Quantity: 0 Pieces
Size: 25A
Pressure: 5K
Body Material: Cast Tin Bronze
Type: Swing Type
  1.  The flanges shall conform to nominal pressure 5K of JIS B2240

  2. Materials:

(1). Body:Bronze;

(2). Bonnet: Bronze;

(3). Disc: Bronze;

(4). Hinge Pin: Brass;

(5). Plug: Brass/Stainless Steel

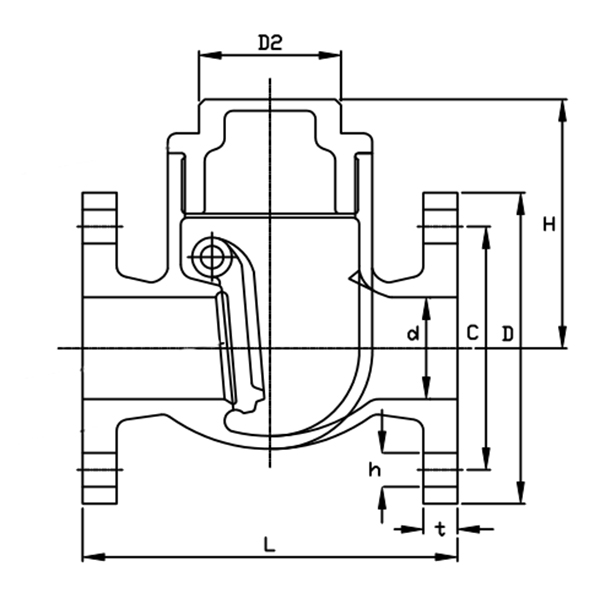

    3. Dimensions

Size

d

D

C

n-h

t

L

H

kg

25A

25

95

75

4-12

10

110

69

2.24
