JIS F7364 - JIS 10K Cast Iron Gate Valve

JIS F7364 - JIS 10K Cast Iron Gate Valve

Quantity: 10 Pieces
Size: 65A
Pressure: 10K
Body Material: Cast Iron
Type: Straight
  1. The flanges shall conform to nominal pressure 10K of JIS B2210

  2. The name plate shall be specified by purchaser as required

  3. kg: 27.6

  4. Materials:

(1). Body: Cast Iron;

(2). Bonnet: Cast Iron;

(3). Stuffing Box: Cast Iron;

(4). Disc: Cast Iron;

(5). Handwheel: Cast Iron;

(6). Valve Seat Of Body: Bronze/Stainless Steel;

(7). Valve Seat Of Disc: Bronze/Stainless Steel;

(8). Screwed Piece: Bronze/Stainless Steel;

(9). Guide Bush : Bronze/Stainless Steel;

(10). Guide Bush: Bronze/Stainless Steel;

(11). Packing Glang: Bronze;

(12). Indicator: Brass;

(13). Indicator Plate: Brass;

(14). Stem: Brass/Stainless Steel;

(15). Stud Bolt: Steel;

(16). Stud Bolt: Steel;

(17). Stud Bolt: Steel;

(18). Taper Pin With Thread: Stainless Steel;

(19). Hexagon Nut: Steel;

(20). Hexagon Nut: Steel;

(21). Hexagon Nut: Steel;

(22). Hexagon Nut: Steel;

(23). Hexagon Nut: Steel;

(24). Machine Screw: Steel;

(25). Split Pin: Brass;

(26).  Packing: Non Asbestos;

(27). Gasket: Non Asbestos;

(28). Gasket: Non Asbestos;

(29). Washer: Steel

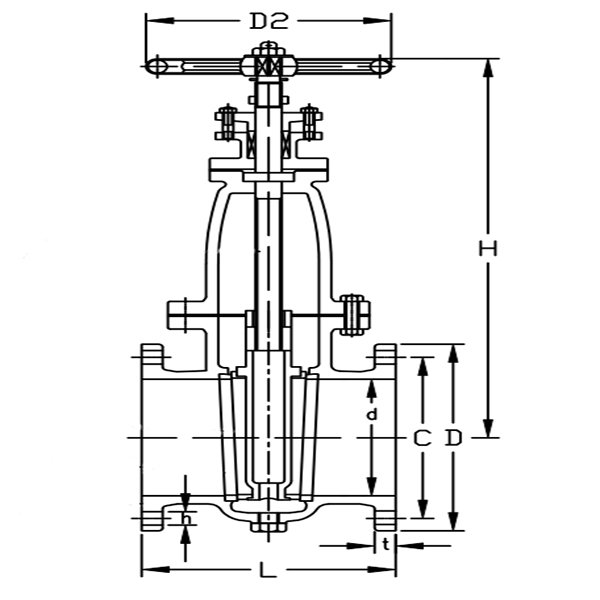

    4. Dimensions

Type

Size

L

D

C

No.

h

t

H

D2

F7364

10K

65

220

175

140

4

19

22

350

160

JIS F7364 - JIS 10K Cast Iron Gate Valve.jpgJIS F7364 Cast Iron Gate Valve.jpg
