JIS 7348 - JIS 16K Bronze Globe Valve - Union Bonnet
  • JIS 7348 - JIS 16K Bronze Globe Valve - Union Bonnet
JIS 7348 - JIS 16K Bronze Globe Valve - Union Bonnet

JIS 7348 - JIS 16K Bronze Globe Valve - Union Bonnet

Quantity: 0 Pieces
Size: 25A
Pressure: 16K
Body Material: Bronze
Type: Straight
  1.   The flanges shall conform to nominal pressure 16K of JIS B2240

  2. Materials:

(1). Body: Bronze;

(2). Bonnet: Bronze;

(3). Bonnet Nut: Bronze;

(4). Disc: Bronze;

(5). Packing Gland: Bronze;

(6). Packing Gland Nut: Brass;

(7). Stem: Brass;

(8). Handwheel: Cast Iron;

(9). Hexagon Nut: Brass;

(10). Split Pin: Brass;

(11). Packing: Non Asbestos;

(12). Gasket: Non Asbestos;

(13). Washer: Steel;

(14). Indicator Plate: Brass;

(15). Indicator Pliece: Brass

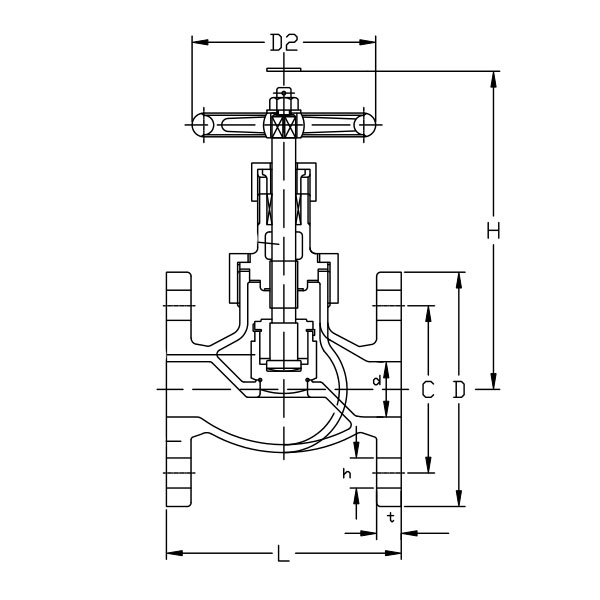

    3. Dimensions

Type

Size

D2

D

C

N-h

t

L

H

kg

F7348

16K

25A

125

95

75

4-12

10

110

220

21


JIS 7348 - JIS 16K Bronze Globe Valve - Union Bonnet.jpgJIS 7348 - JIS 16K Bronze Globe Valve - Union Bonnet1.jpg
