Quantity: 10 Pieces |
Size: 32A |
Pressure: 5K |
Body Material: Bronze |
Type: Straight |
The flanges shall conform to nominal pressure 5K of JIS B2240
JIS F7301 5K for nominal dia 32 shall be mode Botled Bonnet type
3. Materials:
(1). Bode: Bronze;
(2). Bonnet: Bronze/Brass;
(3). Disc: Bronze/Brass;
(4). Valve Disc Nut: Brass;
(5). Packing Gland: Brass;
(6). Gland Nut: Brass;
(7). Stem: Brass;
(8). Set Screw: Brass;
(9). Hendweel: Cast Iron;
(10). Hexagon Nut: Brass;
(11). Split Pin: Brass;
(12). Lock Plate: Brass;
(13). Disc Lock Washer: Brass;
(14). Packing: Non Asbestos;
(15). Washer: Steel;
(16). Indicator Plate: Brass;
(17). Indicator Piece

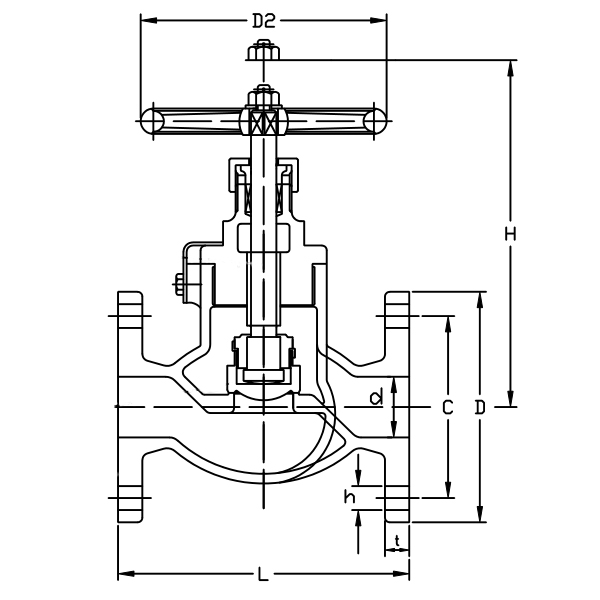

4. Dimensions
Type | Size | L | D | C | No. | h | t | H | D2 |
F7301 5K | 32 | 140 | 115 | 90 | 4 | 15 | 12 | 170 | 125 |
