JIS F7303 25A 16K Globe Valve

1. The flanges shall conform to nominal pressure 5K of JIS B2240

2. JIS F7303 16K for nominal dia 25 shall be mode Botled Bonnet type

    3. Materials:

(1). Bode: Bronze;

(2). Bonnet: Bronze/Brass;

(3). Disc: Bronze/Brass;

(4). Valve Disc Nut: Brass;

(5). Packing Gland: Brass;

(6). Gland Nut: Brass;

(7). Stem: Brass;

(8). Set Screw: Brass;

(9). Hendweel: Cast Iron;

(10). Hexagon Nut: Brass;

(11). Split Pin: Brass;

(12). Lock Plate: Brass;

(13). Disc Lock Washer: Brass;

(14). Packing: Non Asbestos;

(15). Washer: Steel;

(16). Indicator Plate: Brass;

(17). Indicator Piece

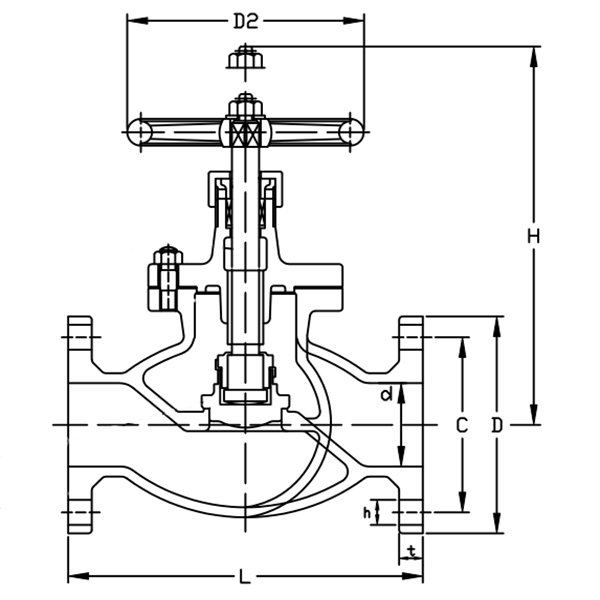

    4. Dimensions
