JIS F7305-JIS 10K Cast Iron Globe Valve
  • JIS F7305-JIS 10K Cast Iron Globe Valve
JIS F7305-JIS 10K Cast Iron Globe Valve

JIS F7305-JIS 10K Cast Iron Globe Valve

Quantity: 0 Pieces
Size: 125A
Pressure: 10K
Body Material: Cast Steel
  1. The flanges shall conform to nominal pressure 10K of JIS B 2210

  2. The name plate shall be specified by purchaser as requred

  3. Materials:

(1). Bode: Cast Iron;

(2). Bonnet: Cast Iron;

(3). Handwheel: Cast Iron;

(4). Disc: Bronze/Stainless Steel;

(5). Valve Seat: Bronze/Stainless Steel;

(6). Disc Nut: Bronze/Stainless Steel;

(7). Screw Bonnet Bush: Bronze/Stainless Steel;

(8). Bonnet Bus: Bronze/Stainless Steel;

(9). Packing Gland: Bronze;

(10). Sten: Bronze/Stainless Steel;

(11). Stud Bolt: Steel;

(12). Stud Bolt: Steel;

(13). Hexagon Nut: Steel;

(14).  Hexagon Nut: Steel;

(15).  Hexagon Nut: Steel;

(16). Lock Pin: Steel;

(17). Split Pin: Brass;

(18). Disc Lock Washer: Brass;

(19). Packing: Non Asbestos;

(20). Gasket: Non Asbestos;

(21). Washer: Steel

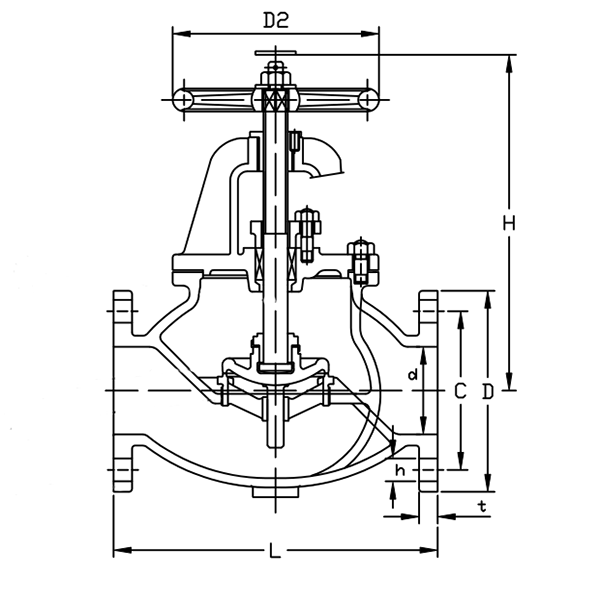

   4. Dimensions

Type

Size

L

D

C

No-h

d

t

H

kg

F7305

10K

125

410

235

200

8-19

125

20

390

57.6


JIS F7305-JIS 10K Cast Iron Globe Valve.jpgJIS F7307 Globe Valve.png
